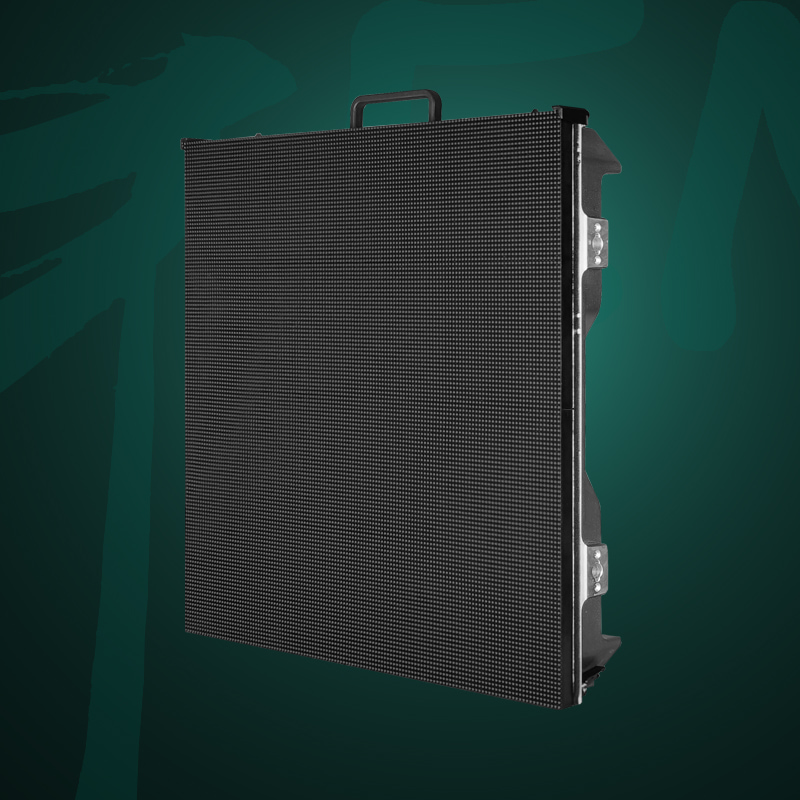

Indoor-Outdoor Rental LED Display

Gemsign’s Malus series is designed for outdoor and indoor rental application, different from other rental led displays, our Malus series share almost all the components and cabinet with only changing some waterproof required parts to easily make the led display for both outdoor and indoor use.

Pixel Pitch :
Indoor: 1.56mm, 1.95mm, 2.6mm; Outdoor: 2.97mm, 3.91mm, 4.81mm

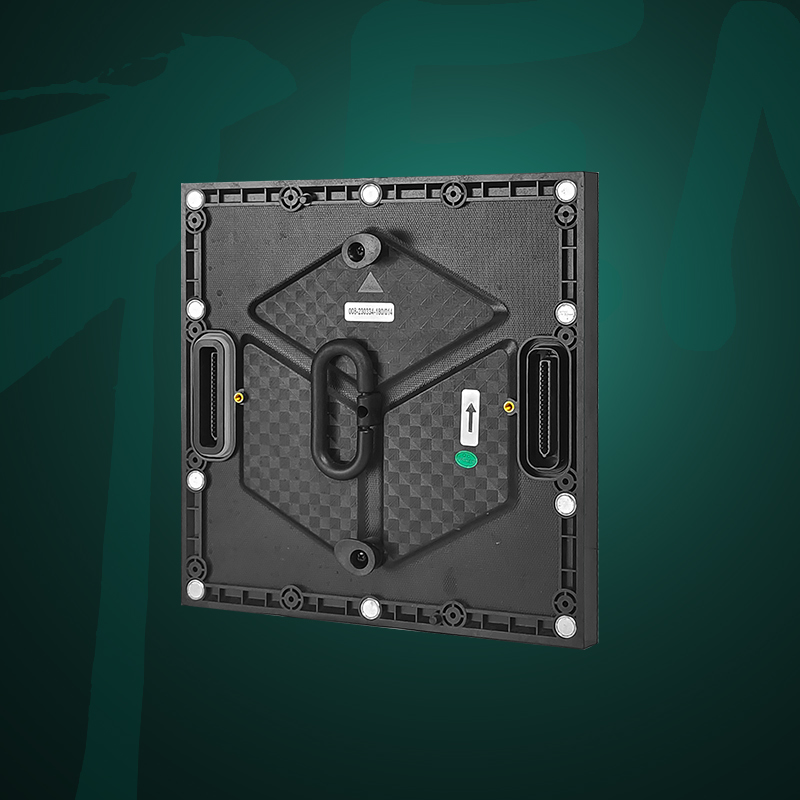

Module Dimensions :
250mm*250 mm

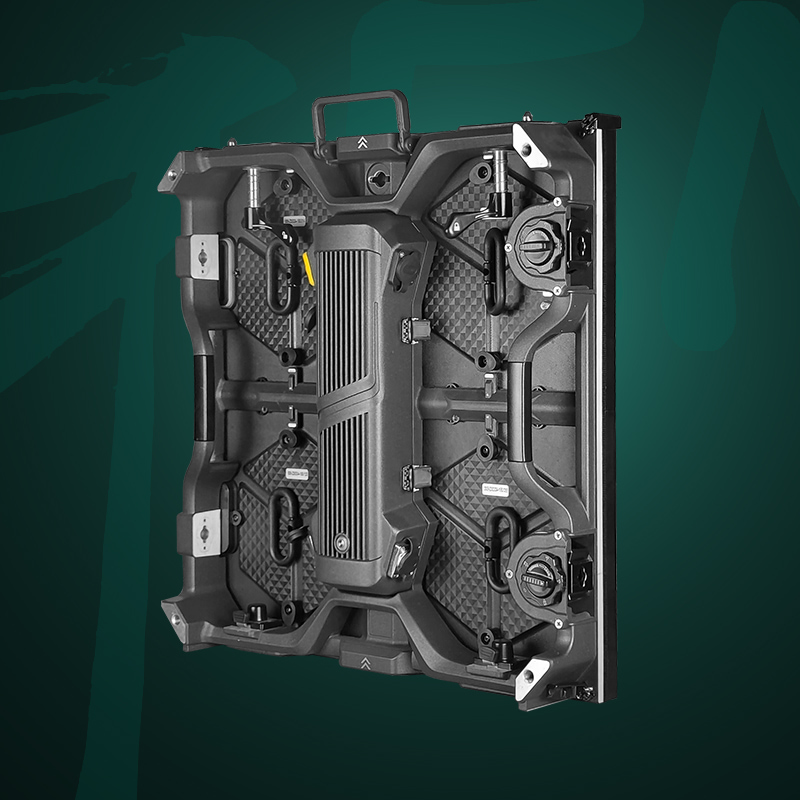

Cabinet Dimensions :
500mm*500mm; 500*1000mm
Brightness :
Indoor: 800nits; Outdoor: 4000-5000nits
Max. consumption :
550W-750W
Ingress Protection :
Indoor: IP54; Outdoor: IP65
Service :
Front / Rear installation, Front / Rear Service

Inquire Now

Product Details
Specifications

1) Untra thin and lightweight with 8.3kg/cabinet

2) Smooth curvers & excellent image performance

3) Easy operation：Slide button to unlock angle options，press to select an angle position pin protects the led light on the base

4) extreme curves：12 cabinet at a 30 degree angle can create a perfect 1.9m diameter circled display wall

5) compatible with other series

6) 160 degree viewing angle

7) rear maintenance

8) customizable cabinet：corner protection structure can be added if needed to better protect the LEDs on the edge from physical damage.

9) stacking and hanging system

TECHNICAL PARAMETER		Malus (Indoor)				Malus (Outdoor)
TECHNICAL PARAMETER		Malus-I-1.9	Malus-I-2.6	Malus-I-2.9	Malus-I-3.9	Malus-O-2.9	Malus-O-3.9	Malus-O-4.8
Physical	Pixel Pitch (mm)	1.95	2.60	2.98	3.91	2.98	3.91	4.81
	Pixel Density (dots)	262,144	147,456	112,896	65,536	112,896	65,536	43,264
	LED Type	SMD1515	SMD1515	SMD1515	SMD2020	SMD1415	SMD1921	SMD1921
	Module Dimensions (mm)	250 x 250	250 x 250	250X250	250X250	250 x 250	250 x 250	250 x 250
	Module Matrix (dots)	128 x 128	96 x 96	84X84	64X64	84 x 84	64 x 64	52 x 52
	Module Weight (kg)
	Cabinet Dimensions (mm)	500 x 500 x 66				500 x 500 x 66
	Cabinet Matrix (dots)	256 x 256	192 x 192	168X168	128X128	168 x 168	128 x 128	104 x 104
	Cabinet Weight (kg)
Electrical	Scan Mode	32S	32S	28S	16S	21S	16S	13S
	Video Rate (Hz)	60	60	60	60	60	60	60
	Refresh rate (Hz)	3840	3840	3840	3840	3840	3840	3840
	Color Processing	14bit	14bit	14bit	14bit	14bit	14bit	14bit
	Data Stored on Module	Yes	Yes	Yes	Yes	Yes	Yes	Yes
	Input Pvoltage	AC 100~240V 50/60Hz				AC 100~240V 50/60Hz
	Max.consumption (w/m²)	480	480	480	480	720	720	720
	Avg. consumption (w/m²)	160	160	160	160	240	240	240
Optical	Brightness (nit)	800	800	800	800	4000	5000	5000
	Contrast Ratio	10000 : 1				10000 : 1
	Viewing Angle(H/V)	160° /160°				160° /160°
	Dimming Capability	256 levels				256 levels
	Color temperature	4,500 - 9,000K (Adjustable )				4,500 - 9,000K (Adjustable )
Operational	Working Environment	﹣10℃-+40℃/10%RH-90%RH				﹣10℃-+40℃/10%RH-90%RH
	Storage Environment	﹣40℃-+60℃/10%RH-90%RH				﹣40℃-+60℃/10%RH-90%RH
	Cooling	Thermal nature ventilation				Thermal nature ventilation
	Ingress Protection	IP54				IP66 front / IP65 rear
	LED Lifetime	100,000 hours				100,000 hours
	MTBF	>5,000 hours				>5,000 hours
	Service	Front / Rear installation, Front / Rear Maintenanc
