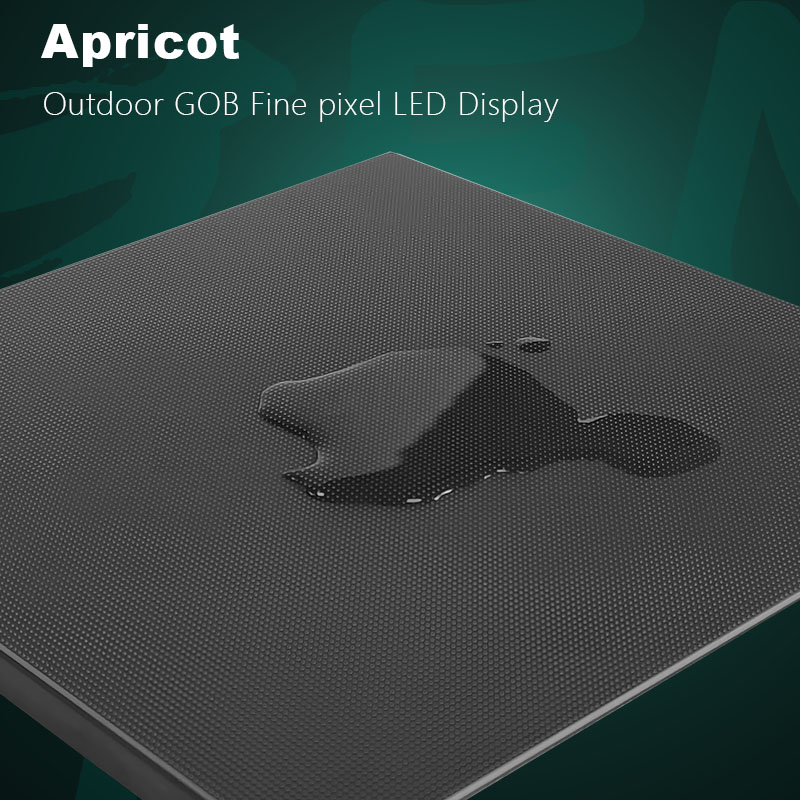

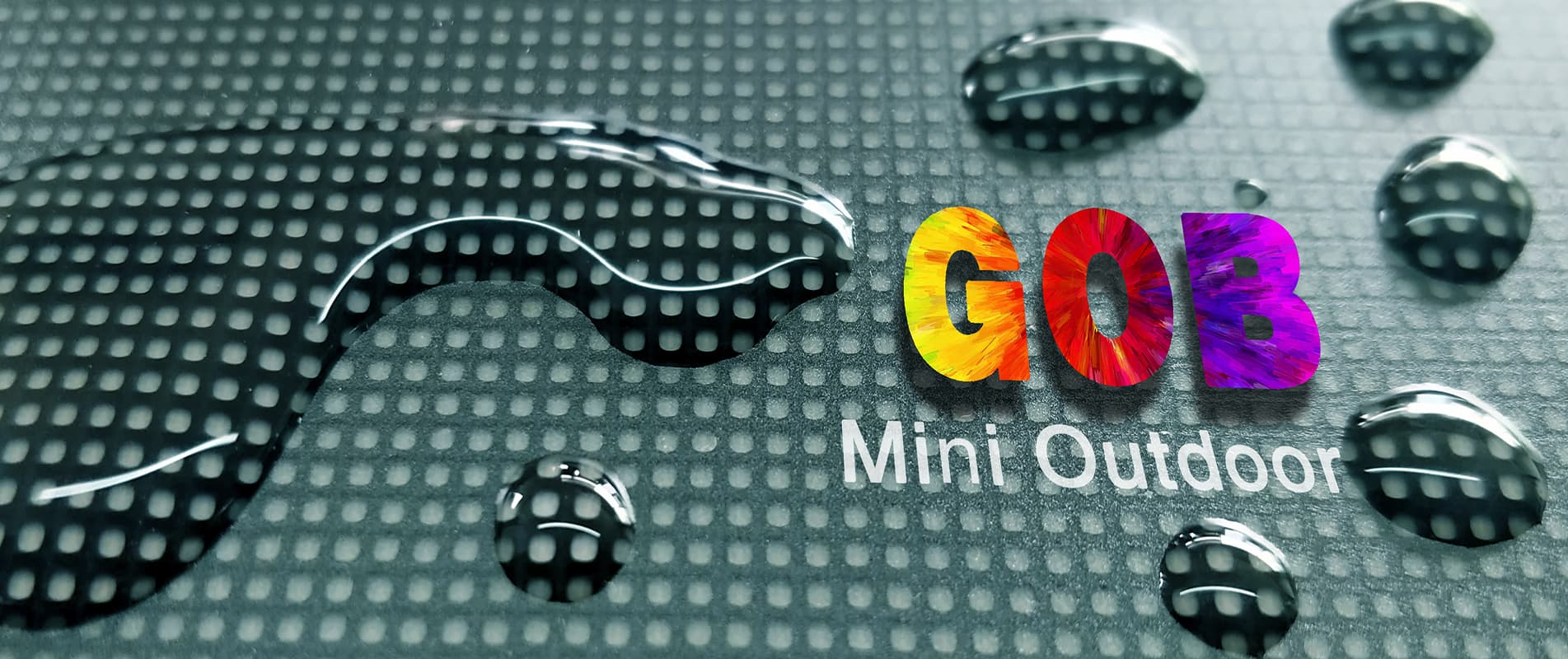

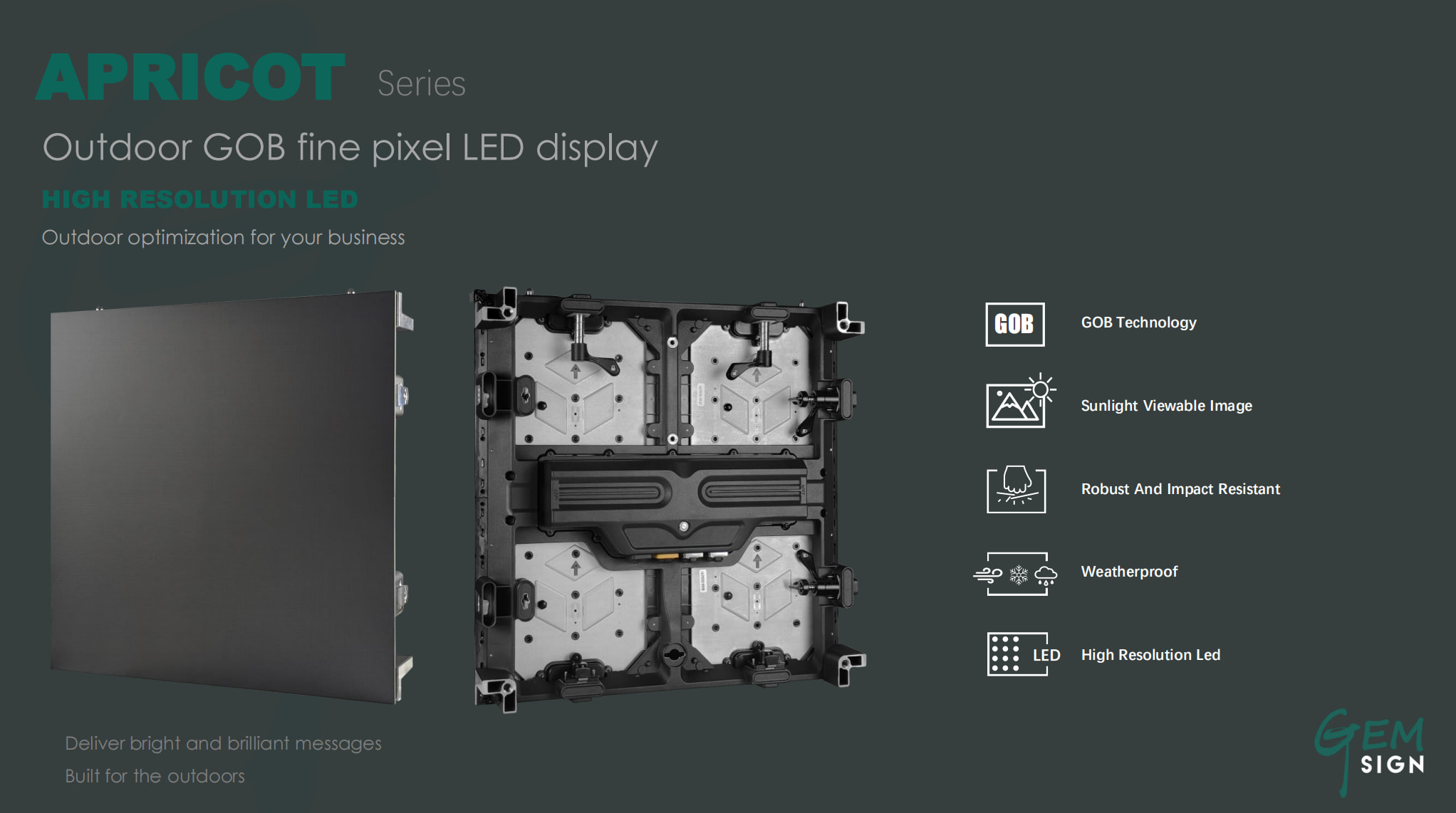

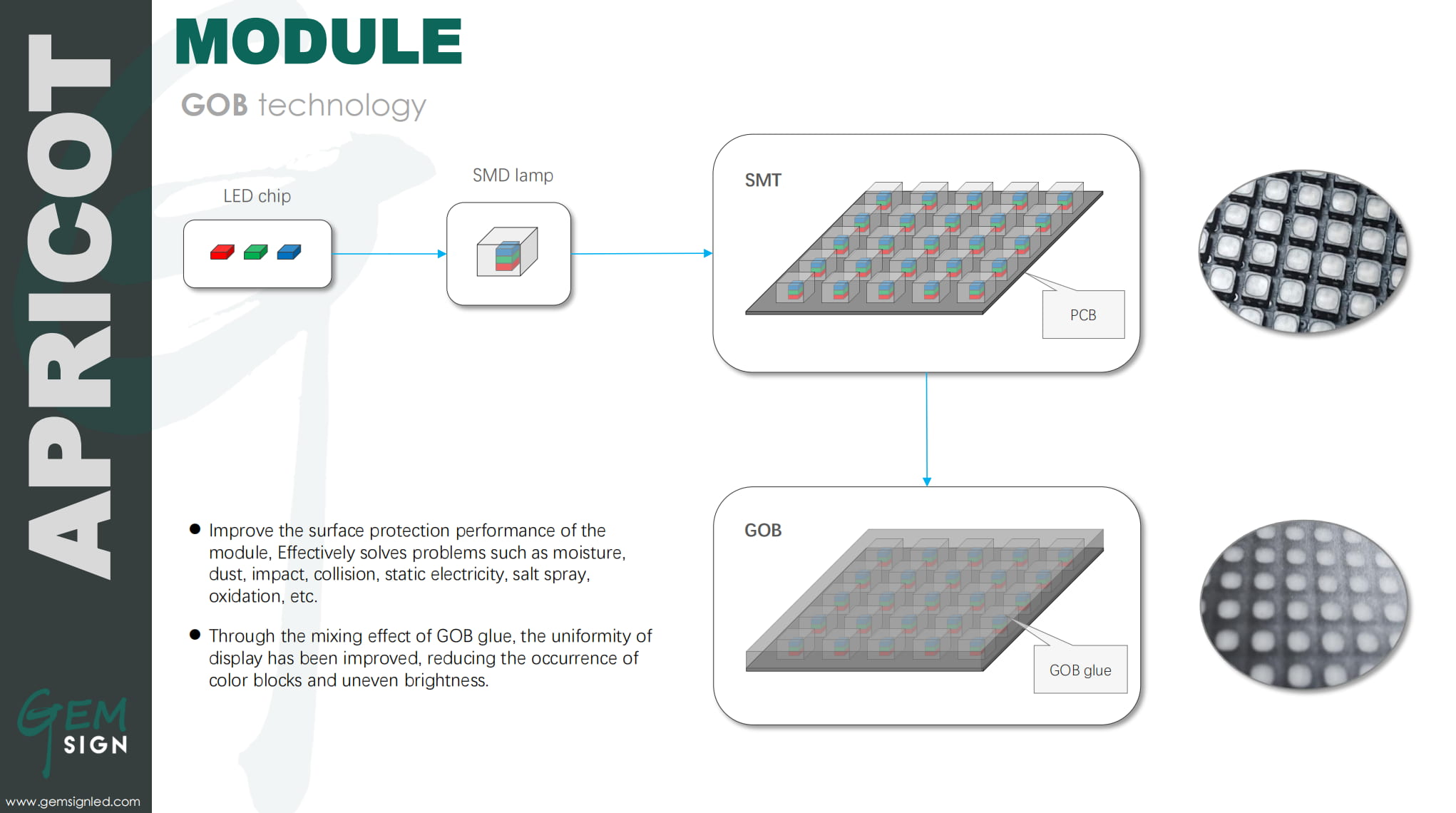

Adopting the latest GOB packaging technology to achieve fine pixel pitch of outdoor LED displays. Solved the problems of product weather resistance, moisture resistance, waterproof, dustproof, impact resistance, collision resistance, anti-static, oxidation resistance, lamp bead heat dissipation, blue light radiation resistance, UV resistance, etc.
Pixel Pitch :
1.25mm, 1.56mm, 1.95mm, 2.6mm (GOB)Module Dimensions :
250mm x 250mmCabinet Dimensions :
500mm x 500mmBrightness :
4000 nitMax. consumption :
580 w/m2Ingress Protection :
IP66 front / IP66 rearService :
Front / Rear installation, Front / Rear ServiceAdopting the latest GOB packaging technology to achieve fine pixel pitch of outdoor LED displays. Solved the problems of product weather resistance, moisture resistance, waterproof, dustproof, impact resistance, collision resistance, anti-static, oxidation resistance, lamp bead heat dissipation, blue light radiation resistance, UV resistance, etc.
| TECHNICAL PARAMETER | Apricot Pro (GOB) | ||||
| Apricot-1.2 Pro | Apricot-1.5 Pro | Apricot-1.9 Pro | Apricot-2.6 Pro | ||
| Physical | Pixel Pitch (mm) | 1.25 | 1.56 | 1.95 | 2.60 |
| Pixel Density (dots) | 640,000 | 409,600 | 262,144 | 147,456 | |
| LED Type | SMD0808 | SMD1010 | SMD1010 | SMD1010 | |

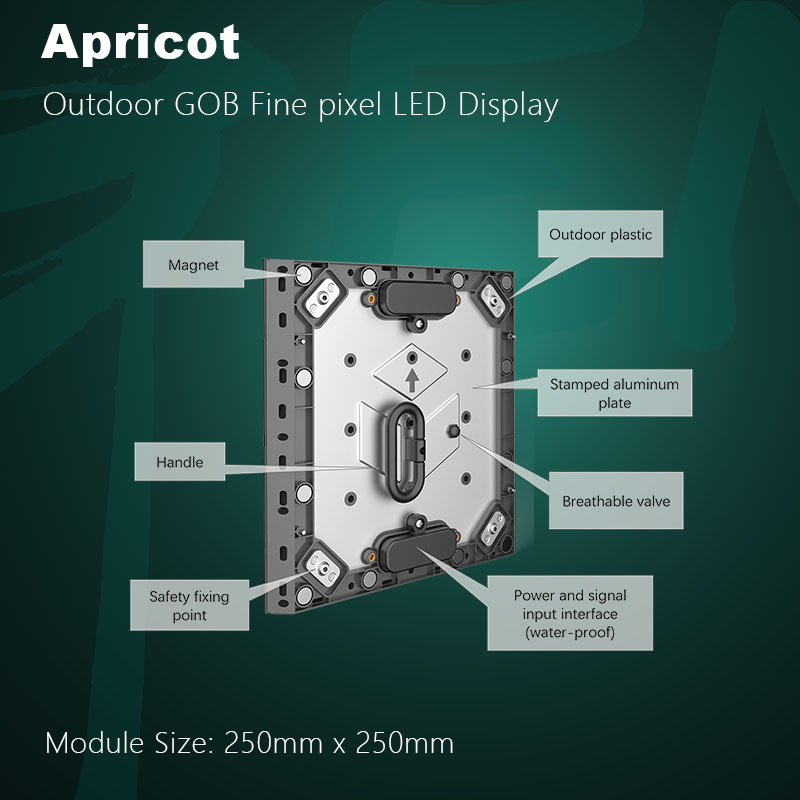

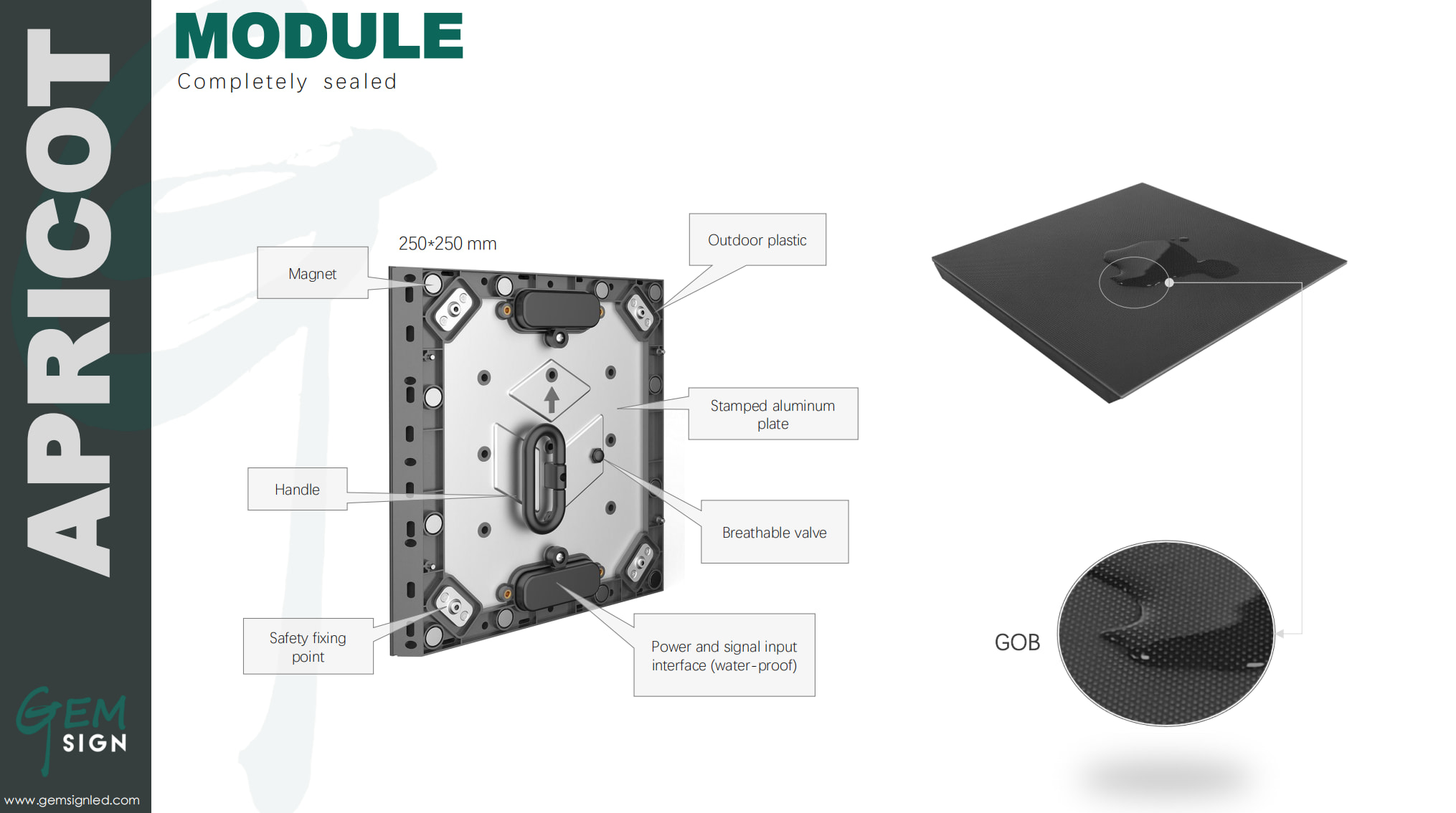

| Module Dimensions (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | |
| Module Matrix (dots) | 200 x 200 | 160 x 160 | 128 x 128 | 96 x 96 | |
| Module Weight (kg) | 0.39 | 0.39 | 0.39 | 0.41 | |

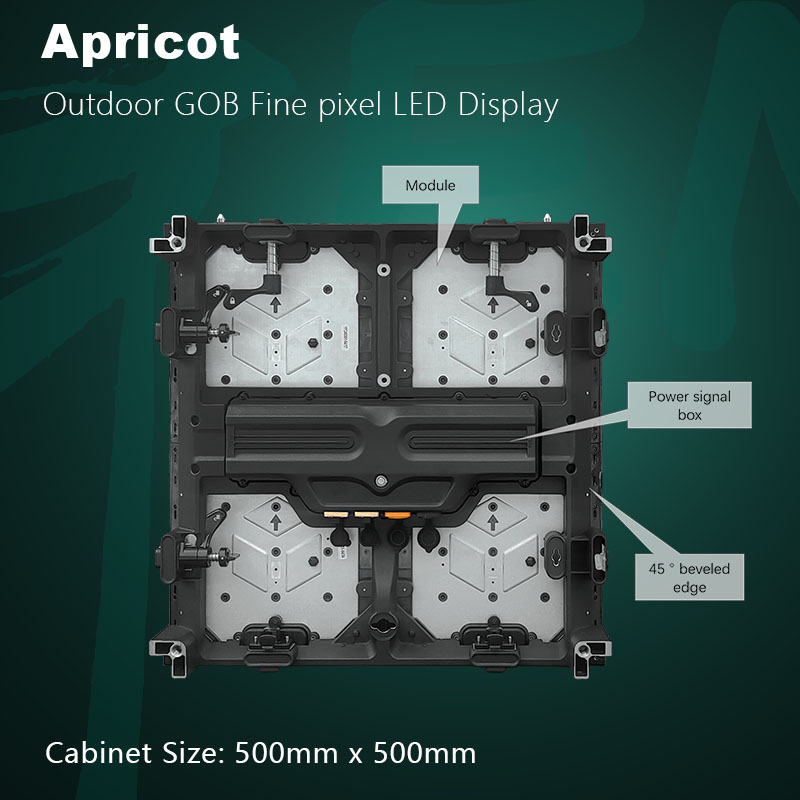

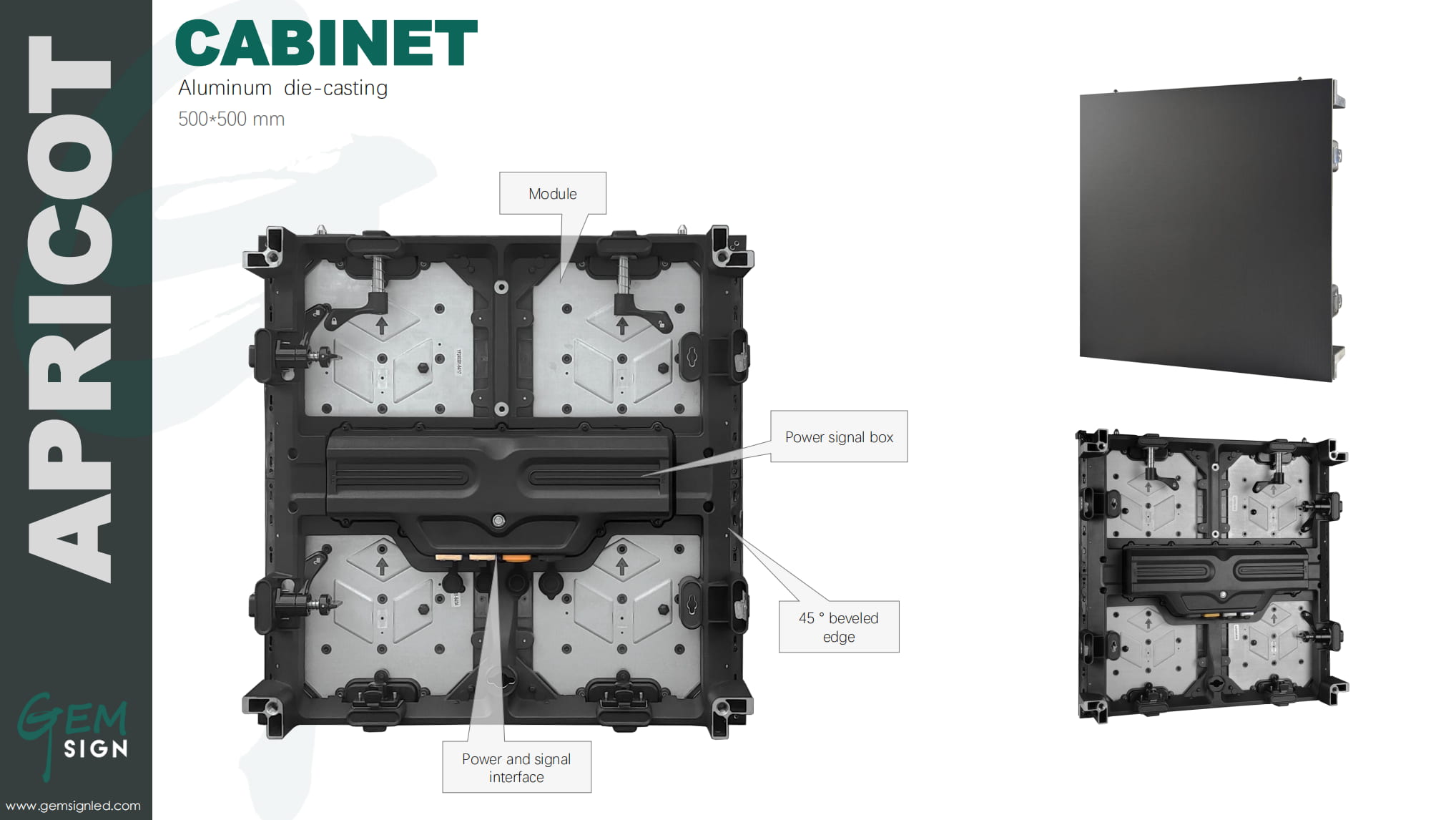

| Cabinet Dimensions (mm) | 500 x 500 x 66 | 500 x 500 x 66 | 500 x 500 x 66 | 500 x 500 x 66 | |
| Cabinet Matrix (dots) | 400 x 400 | 320 x 320 | 256 x 256 | 192 x 192 | |
| Cabinet Weight (kg) | 9.5 | 9.5 | 9.5 | 9.5 | |
| Electrical | Scan Mode | 40S | 26S | 32S | 24S |
| Video Rate (Hz) | 60 | 60 | 60 | 60 | |
| Refresh rate (Hz) | 3840 | 3840 | 3840 | 3840 | |
| Color Processing | 14bit | 14bit | 14bit | 14bit | |
| Data Stored on Module | Yes | Yes | Yes | Yes | |
| Input Pvoltage | AC 100~240V 50/60Hz | ||||
| Max.consumption (w/m²) | 816 | 816 | 816 | 816 | |
| Avg. consumption (w/m²) | 272 | 272 | 272 | 272 | |
| Optical | Brightness | 4000 | 4000 | 4000 | 4000 |
| Contrast Ratio | 10000 : 1 | ||||
| Viewing Angle(H/V) | 160° /160° | ||||
| Dimming Capability | 256 levels | ||||
| Color temperature | 4,500 - 9,000K (Adjustable ) | ||||
| Operational | Working Environment | ﹣10℃-+40℃/10%RH-90%RH | |||
| Storage Environment | ﹣40℃-+60℃/10%RH-90%RH | ||||
| Cooling | Thermal nature ventilation | ||||
| Ingress Protection | IP66 front / IP65 rear | ||||
| LED Lifetime | 100,000 hours | ||||
| MTBF | >5,000 hours | ||||

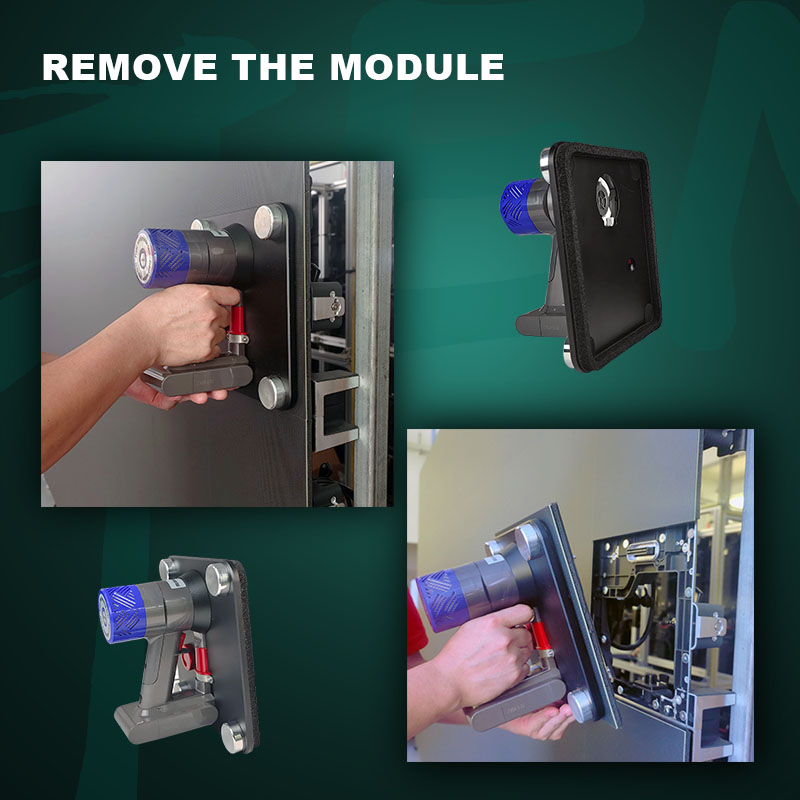

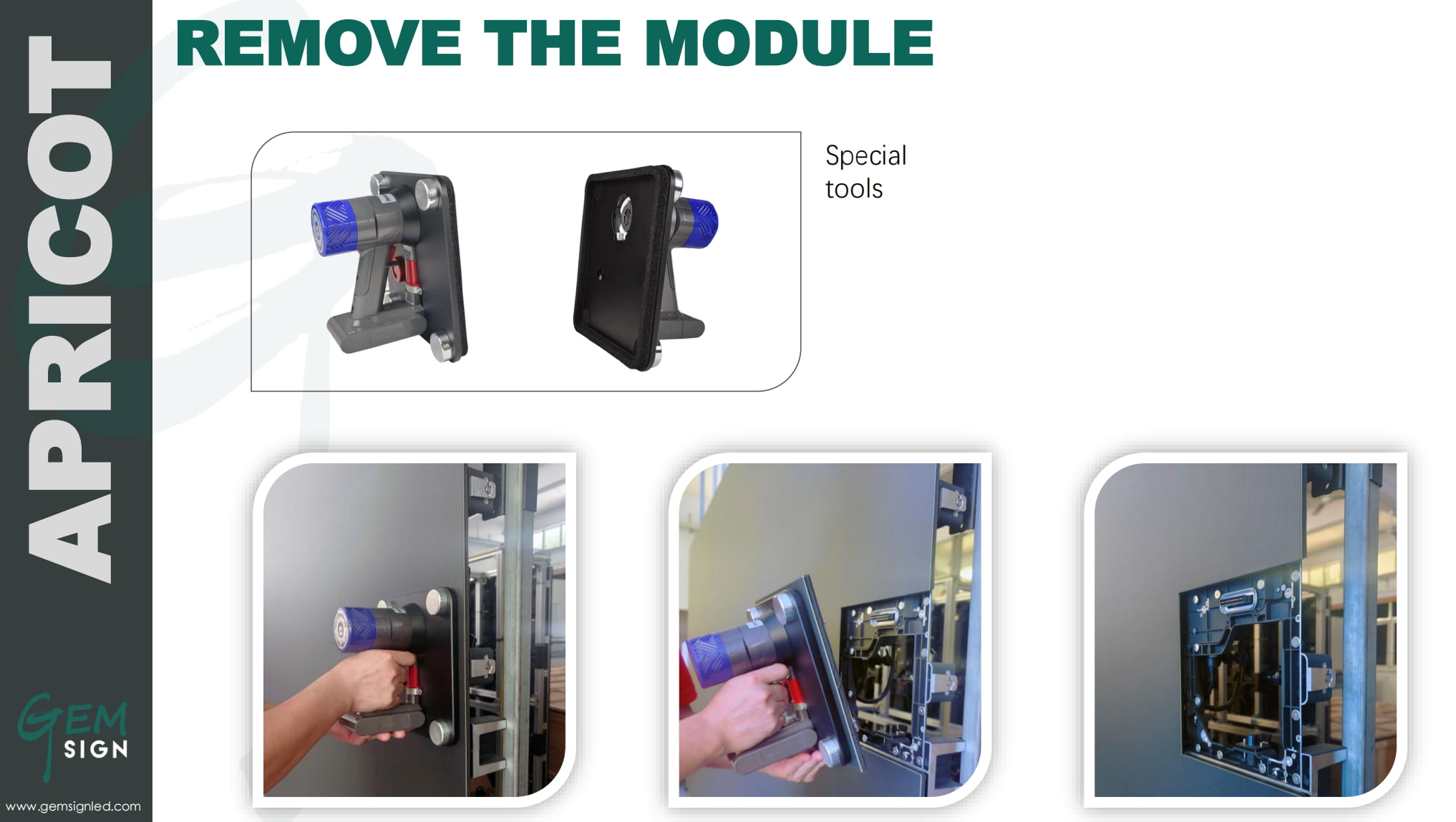

| Service | Front / Rear installation, Front / Rear Maintenance | ||||
Adopting the latest GOB packaging technology to achieve fine pixel pitch of outdoor LED displays. Solved the problems of product weather resistance, moisture resistance, waterproof, dustproof, impact resistance, collision resistance, anti-static, oxidation resistance, lamp bead heat dissipation, blue light radiation resistance, UV resistance, etc.
Learn More
Gemsign’s Apricot series is designed for outdoor fixed application with only one size of cabinet 500mmx500mm and very small pixel pitch 2.98mm and 3.91mm. It can provide unique visual effect with very high brightness.
Learn More
Gemsign’s Acacia series is designed for fixed outdoor use which is an outdoor front service LED display with very high brightness from 6000nits to 10000nit, pixel pitch ranges from 4mm to 10mm. This series almost meets all the requirements for outdoor fixed display, and the brightness can even reach 10000nit according to the needs of customers. It provides high-definition image quality and is convenient to maintain.
