Juglans series is an indoor flexible led screen, and various curved Led creative displays can be built by using Led soft modules and magnetic modules.
Pixel Pitch :
1.538mm, 1.86mm, 2mm, 2.5mmLED Type :
SMDModule Dimensions :
240 x 160 mmBrightness :
800-1000 nitMax. consumption :
650 w/m2Ingress Protection :
IP43 (indoor)Service :

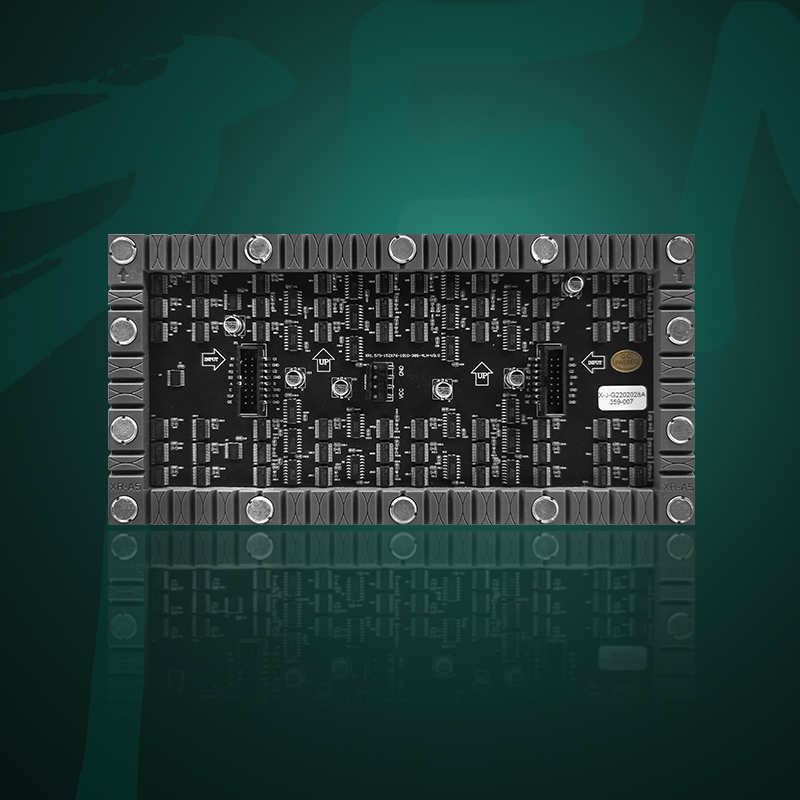

Magnet adsorptionBy combining ultra-thin and high-density PCB boards with a silicone die-casting bottom shell, a bendable display module is formed.

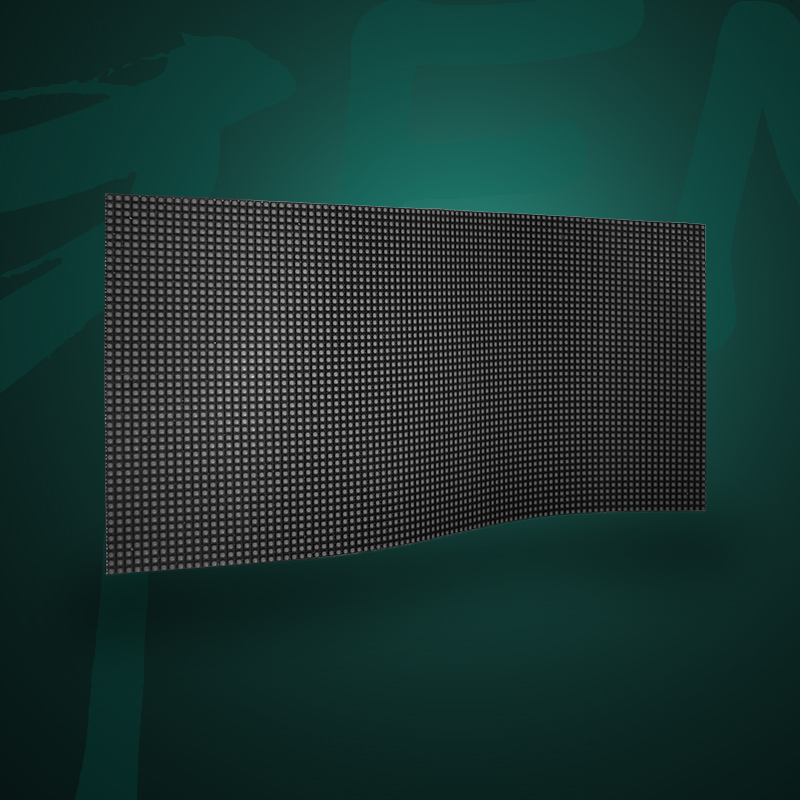

Ultra-light Flexible LED Display Module
LED flexible LED modules are soft and light, making them ideal for creating various curved surfaces and widening design possibilities. there are 2 size module: 240x160mm, 320x120mm.
Flexible Bending (Curvature ≤45°)
By attaching to various customized shaped structures, flexible LED modules can deform and bend to produce various two-dimensional curved shapes.
Front maintenance of modules through magnetic suction
Thanks to the magnetic design, it can be easily attached to any metal surface/structure, saving frame, space and maintenance costs.With special tools, front-end maintenance can be completed, which is convenient and quick.
Eye-catching LED Display
Compared with the traditional regular LED display, many people will be attracted by the flexible LED display with a strange appearance. The application of flexible led display in advertising media and other fields will have unexpected benefits.
Simple and Quick Installation
Adopts a strong magnetic assembly design, which can be quickly installed or replaced, and seamlessly spliced.
Excellent Display performance
Juglans has good brightness, low power consumption, wide viewing angle, good luminous efficiency and high picture definition
Customized Shape
Juglans can be customized in any shape according to customer needs, and can be used in various fields and applications, Especially for various irregular buildings.
TECHNICAL PARAMETER | Juglans-1.5 | Juglans-1.8 | Juglans-2 | Juglans-2.5 | |
Physical | Pixel Pitch (mm) | 1.579 | 1.88 | 2 | 2.5 |
Pixel Density (dots) | 401,111 | 284,444 | 250,000 | 160,000 | |
LED Type | SMD1212 | SMD1515 | SMD1515 | SMD1515 | |
Module Dimensions (mm) | 240 x 120 240 x 240 |
240 x 120 240 x 240 |
240 x 120 240 x 240 |
240 x 120 240 x 240 |
|
Module Matrix (dots) | 152×76 152×152 |
128×64 128×128 |
120×60 120×120 |
96×48 96×96 |
|
Module Weight (g) | 310 | 315 | 300 | 330 | |
Minimum bending radius (mm) | 500 | 400 | 400 | 400 | |
Electrical | Scan Mode | 38S | 32S | 30S | 24S |
Video Rate (Hz) | 60 | 60 | 60 | 60 | |
Refresh rate (Hz) | 3840 | 3840 | 3840 | 3840 | |
Color Processing | RGB 65536 levels (3×16bit) | ||||
Data Stored on Module | Yes | Yes | Yes | Yes | |
Input Pvoltage | AC 100~240V 50/60Hz | ||||
Max.consumption (w/m²) | 694 | 694 | 694 | 694 | |
Avg. consumption (w/m²) | 231 | 231 | 231 | 231 | |
Optical | Brightness | 800 | 800 | 800 | 800 |
Contrast Ratio | 10000 : 1 | ||||
Viewing Angle(H/V) | 160° /160° | ||||
Dimming Capability | 256 levels | ||||
Color temperature | 4,500 - 9,000K (Adjustable ) | ||||
Operational | Working Environment | ﹣10℃-+40℃/10%RH-90%RH | |||
Storage Environment | ﹣40℃-+60℃/10%RH-90%RH | ||||
Cooling | Quiet running vent fans | ||||
Ingress Protection | IP43 | ||||
LED Lifetime | 100,000 hours | ||||
MTBF | >5,000 hours | ||||
Service | Magnet adsorption |
