Based on the core products of the new generation of LED outdoor display and Landscape lighting applications, Teak have cross-border LED display and lighting fields. Serving Outdoor Digital Signage, Media Façade, Architecture Media, Transparent Display and Freeform Trends.
Internal Pixel Pitch of strip :
25mm, 31.25mm, 50mm, customizedLED Type :
SMD，DIPStrip Dimensions :
500-3000mm (Length)Brightness :
8-15 cd/dotIngress Protection :
IP65The stick shaped elements allowing you to mold them around architectural designs to create unique and breathtaking experiences at your facility. Elements are available for both indoor and outdoor application and come in a variety of pixel spacing and transparency options to fit any need or scale.
High frame rate
Frame rate 60Hz, fully meet all kinds of video play requirements, the picture is smooth, no stuck.
High gray scale
RGB 16bit（65536 grade）
High color rendition
Adopt constant current drive, RGB color matching strictly in accordance with white balance requirements. Color temperature can be adjusted by software.
Reducing light pollution
The brightness reduction does not affect the display gray scale, reducing light pollution and energy consumption.
Ultra-long signal transmission
Built-in mini receiving card, the signal of each strip can be independently controlled, one signal can carry up to 3840 pixels.
Circuit backup
Circuit backup can be added to each channel signal, and backup signal can be switched automatically when the signal is broken.
Ultra-long power transmission
DC48V power supply transmission, or even AC power supply transmission, the product cascade can easily achieve power transmission of more than 50m.

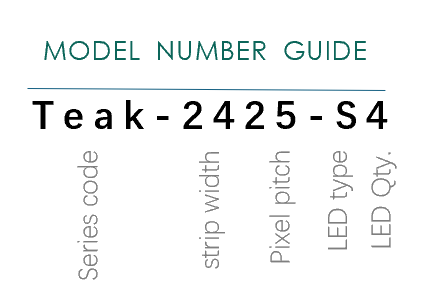

| MODEL | Teak-2425-S4 | Teak-2425-S6 | Teak-2425-M2 | Teak-2025-D6 |
| SIGNAL | SDI Data | SDI Data | SDI Data | SDI Data |
| MATERIAL | Aluminum Body & PC Mask (can customize the color) | |||

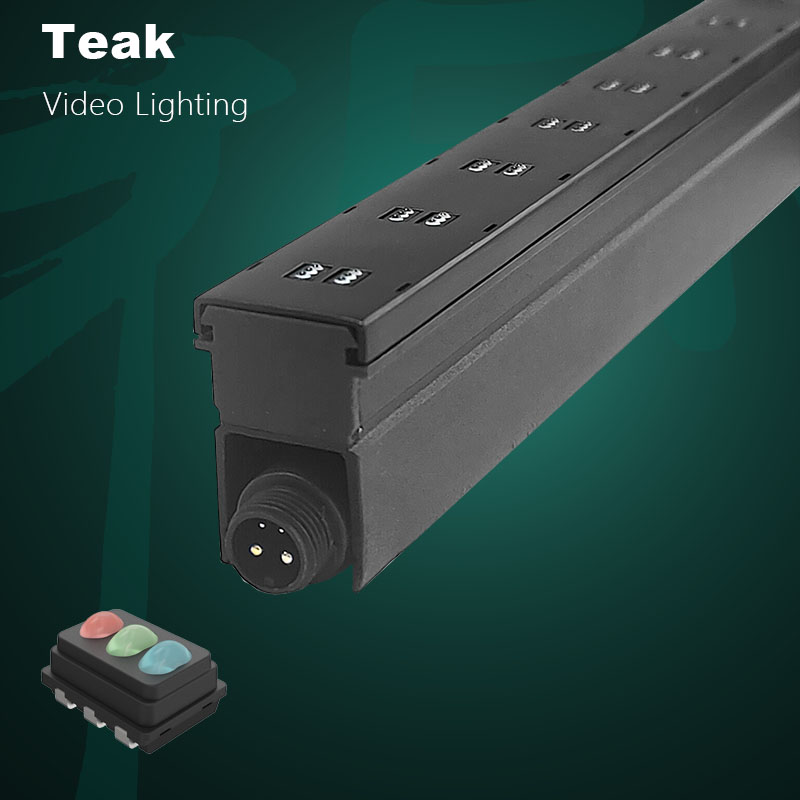

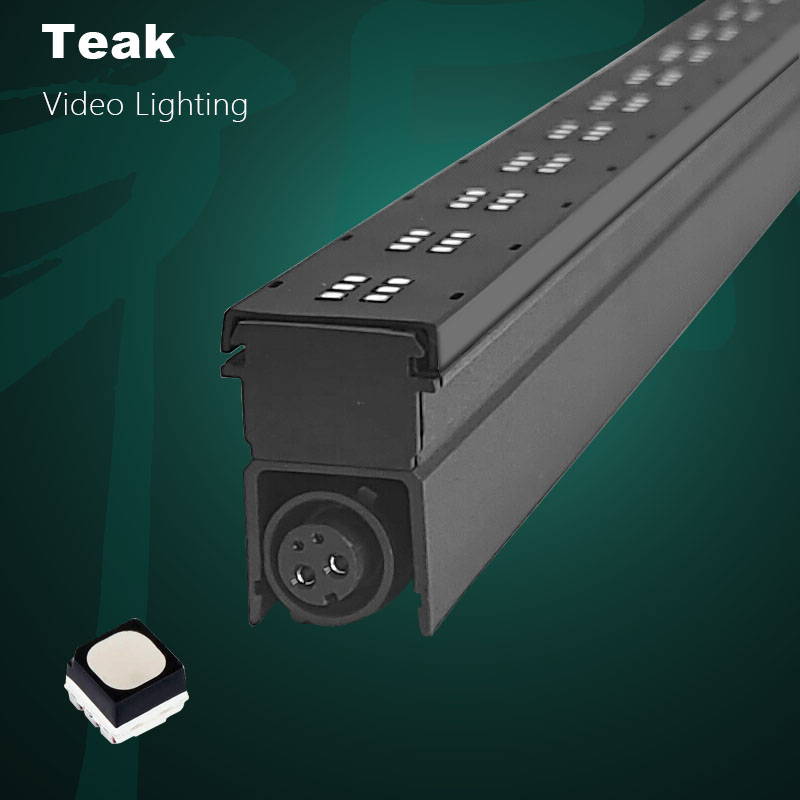

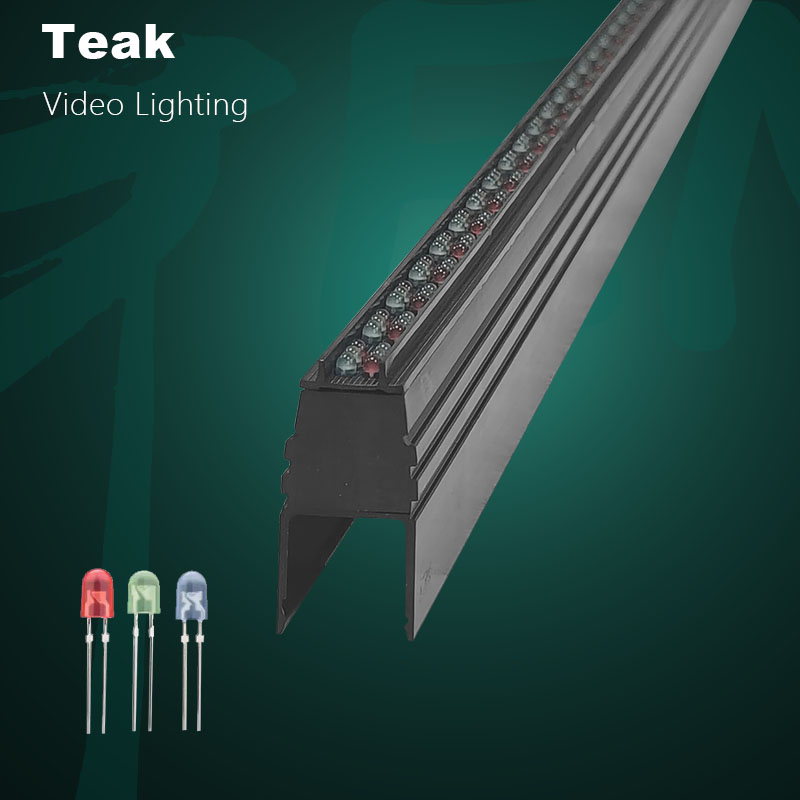

| LED | SMD (4pcs) | SMD (6pcs) | Molding SMD (2pcs) | DIP (2R2G2B) |
| DIMENSIONS OF STRIP(L;W;D) | 1000mm-3000mm；24mm；34mm | 1000mm-3000mm | ||
| (Length can be customized) | 20mm；38mm | |||
| STRIP PERMUTATION | Horizontal | Vertical | Horizontal | Vertical | Horizontal | Vertical | Horizontal | Vertical |
| PIXEL PITCH | Internal of strip: 25mm（can be customized) | |||
| BRIGHTNESS | 8-10（cd/dot） | 8-15（cd/dot） | 8-12（cd/dot） | 12-15（cd/dot） |
| DRIVE MODE | Constant Current, PWM | |||
| INPUT VOLTAGE | DC48 V | |||
| MAXIMUM CONNECTION | Signal：3840dots, with loop backup; Power：DC48V/10A | |||
| POWER CONSUMPTION | Max. 15-20 w/m | Max. 15-30 w/m | Max. 10-15 w/m | Max. 16-20 w/m |
| WEIGHT | 0.9 kg/m | 0.9 kg/m | 0.9 kg/m | 0.68 kg/m |
| PROTECTION | IP67 | |||
| GRAY SCALE | RGB 32768 (3×16bit) | |||
| REFRESH RATE | 3840 Hz | |||
| FRAME RATE | ≥60 Hz | |||
| ENVIRONMENTAL | Temperature: -30℃ to +60℃; Humidity: 10%-90% | |||
| SYSTEM | Colorlight/Mooncell | |||
