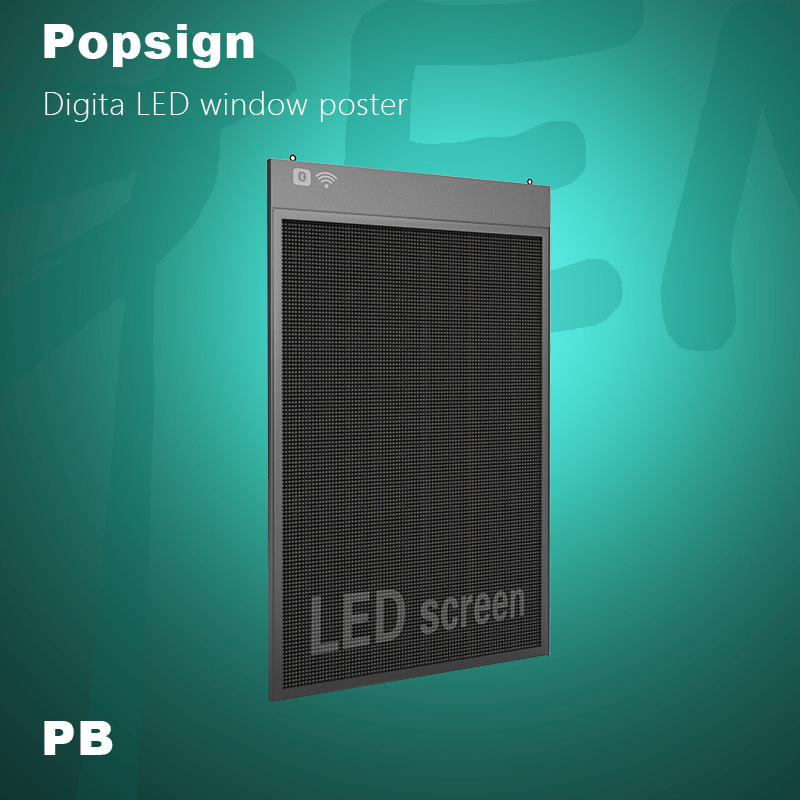

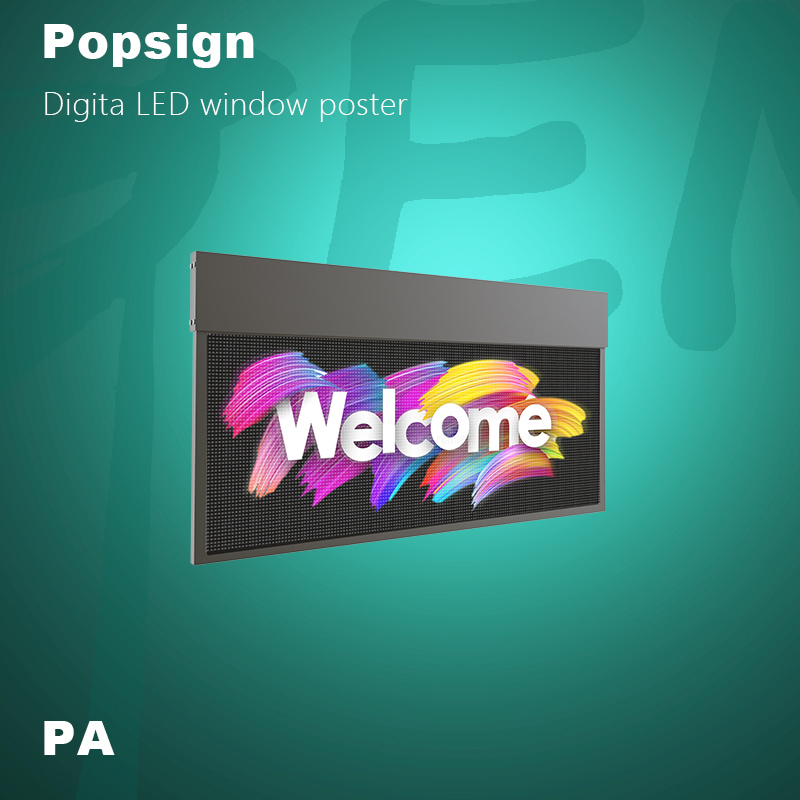

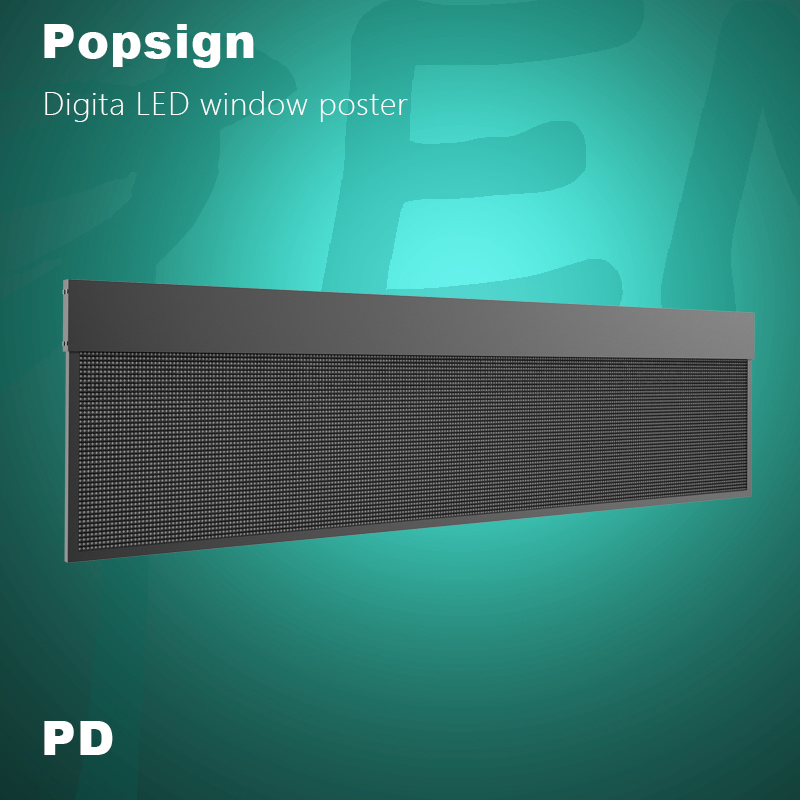

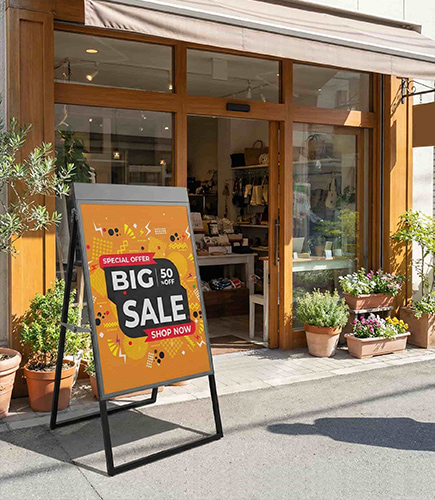

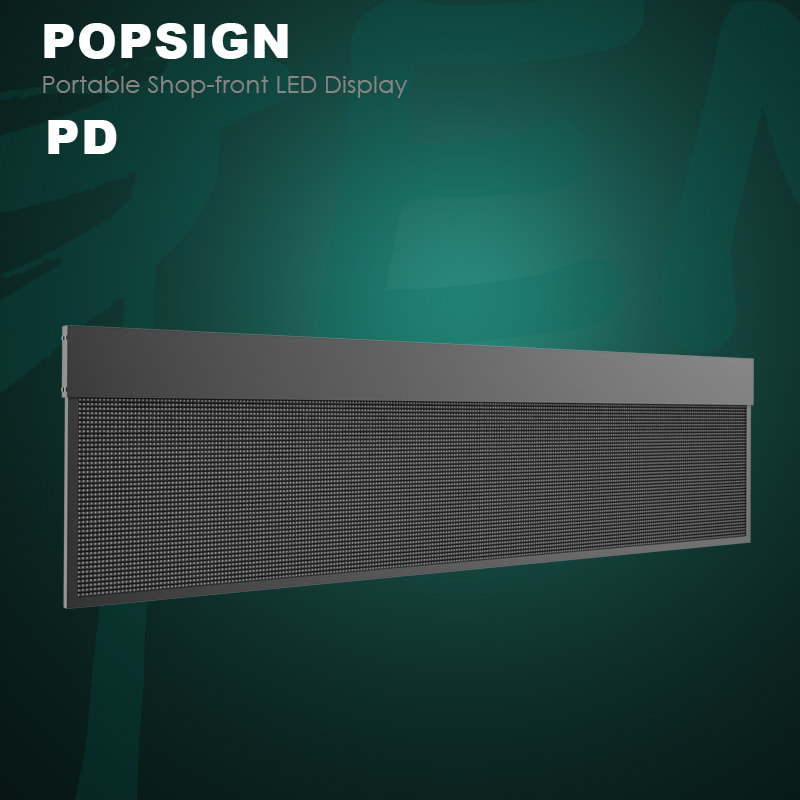

Popsign series has three products which are PA,PB and PD. It has the advantages of fixed size, high brightness, light weight, portable and simple and convenient software operation. The main application is shop, bar, restaurant and other window advertisements, information release, to meet customers' demand for small Led displays.
Pixel Pitch :
PA:3mm; PD:3mm; PB:2.5mm, 5mmLED Type :
BIGScreen Dimension :
PA: 504×285mm; PD:984×285mm; PB:602×920mmNative Resolution :
PA:160 x 64dots; PD:320×64dots; PB:224×320dots, 112×160dotsBrightness :
2500-3000 nitMax. consumption :
PA: 45w; PD:90w; PB:180wIngress Protection :
IP65Popsign series has three products which are PA,PB and PD. It has the advantages of fixed size, high brightness, light weight, portable and simple and convenient software operation. The main application is shop, bar, restaurant and other window advertisements, information release, to meet customers' demand for small Led displays.
1) High brightness
The maximum brightness reaches 2500-3000nit and the brilliance has 32 different levels.
2) Durable
Durable, not afraid of bumps and scratches.
3) Light and thin
Very light weight, the weight is only 15-20% of the normal LED display.
4) Wireless connection
Not only can one device be controlled point-to-point on site, but multiple devices can also be remotely controlled.
5) App control
Control multiple devices and manage your content all through the mobile app
6) High protection level
IP54 to IP65 waterproof level.
| TECHNICAL PARAMETER | Popssign-A-3 | Popssign-D-3 | Popssign-D-5 | Popssign-B-2.5 |
| Pixel Pitch (mm) | 3 | 3 | 5 | 2.5 |
| LED Type | BIG | BIG | BIG | BIG |
| Screen Dimension (mm) | 504×285 | 984×285 | 602×920 | 602×920 |
| Active Dimensions of Display (mm) | 480 x 192 | 960 x 192 | 560 x 800 | 560 x 800 |
| Native Resolution (dots) | 160 x 64 | 320×64 | 112×160 | 224×320 |
| Weight (kg) | 1.9 | 3.5 | 6 | 6 |
| Refresh rate (Hz) | 1920 | |||
| Color Processing | RGB 4096 levels (3×12bit) | |||
| Input Pvoltage | AC 100~240V 50/60Hz | |||
| Max.consumption (w) | 45 | 90 | 180 | 180 |
| Avg. consumption (w) | 15 | 30 | 60 | 60 |
| Brightness (nit) | 2500-3000 | |||
| Contrast Ratio | 10000 : 1 | |||
| Viewing Angle(H/V) | 160° /160° | |||
| Dimming Capability | 32 levels | |||
| Working Environment | ﹣10℃-+40℃/10%RH-90%RH | |||
| Storage Environment | ﹣40℃-+60℃/10%RH-90%RH | |||
| Cooling | Thermal nature ventilation | |||
| Ingress Protection | IP54 | IP65 | ||
| LED Lifetime | 100,000 hours | |||
| MTBF | >5,000 hours | |||

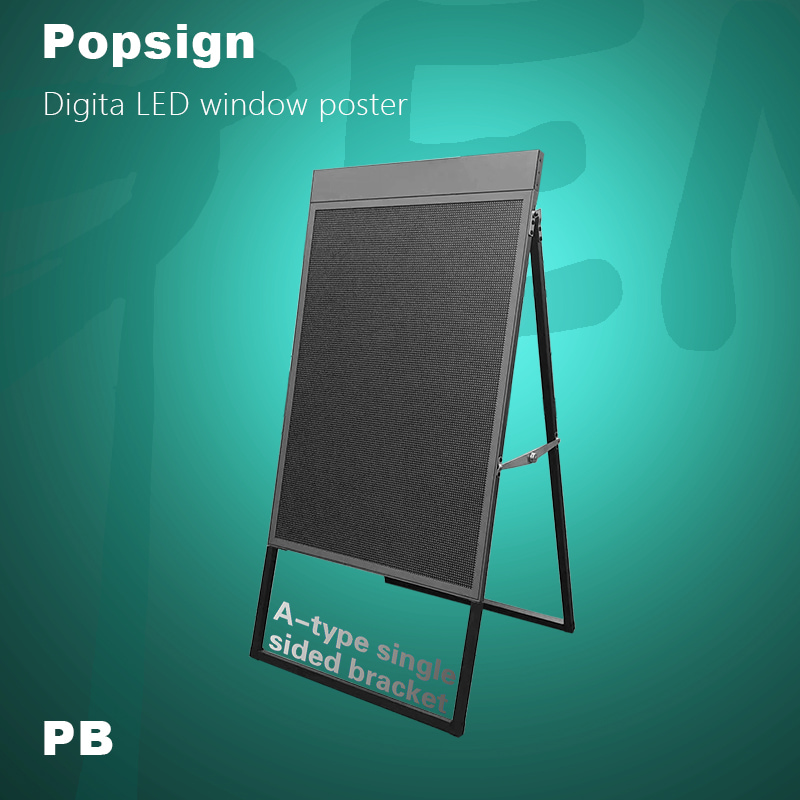

| Usage | Hanging | Hanging, Floor stand | ||
Popsign series has three products which are PA,PB and PD. It has the advantages of fixed size, high brightness, light weight, portable and simple and convenient software operation. The main application is shop, bar, restaurant and other window advertisements, information release, to meet customers' demand for small Led displays.
Learn More

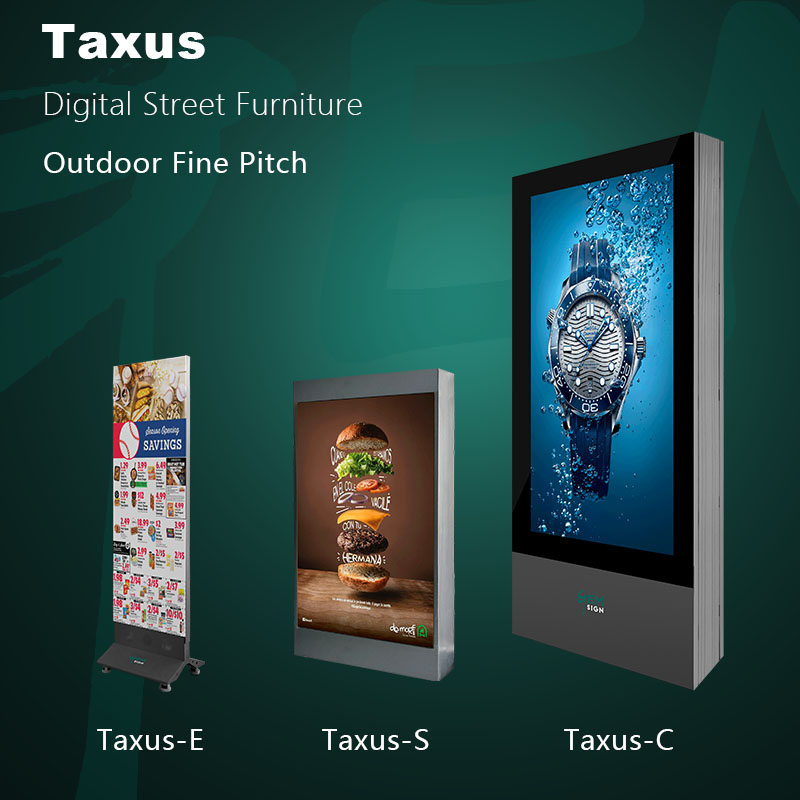

Taxus series is outdoor high-brightness led poster featuring high definition, perfect display ratio of 16:9 with pixel pitch ranging from 1.25mm to 2.6mm, and IP65 high waterproof rating.
Learn More

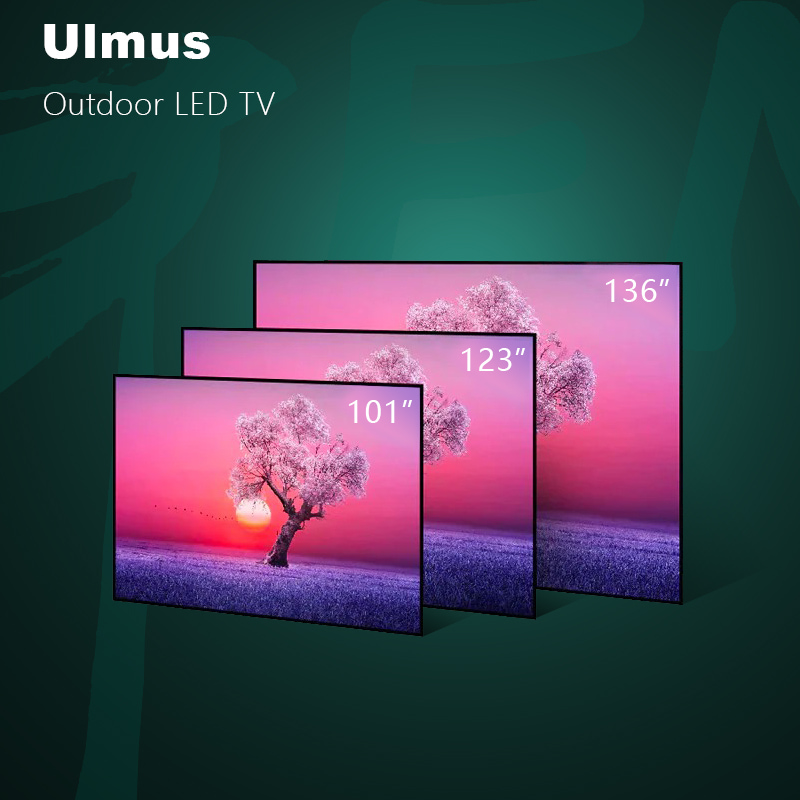

A waterproof LED outdoor TV created by GOB technology. Crafted with high-quality metal for enduring durability, braving all elements and ensuring an extended lifespan even in extreme weather conditions.
Learn More
Populus-B and Populus-M series are mainly LED outdoor digital signs, one in English size and the other in metric size, which makes it easier for customers to choose.
Learn More
Populus-B and Populus-M series are mainly Led outdoor digital signs, one in English size and the other in metric size, which makes it easier for customers to choose.
Learn More

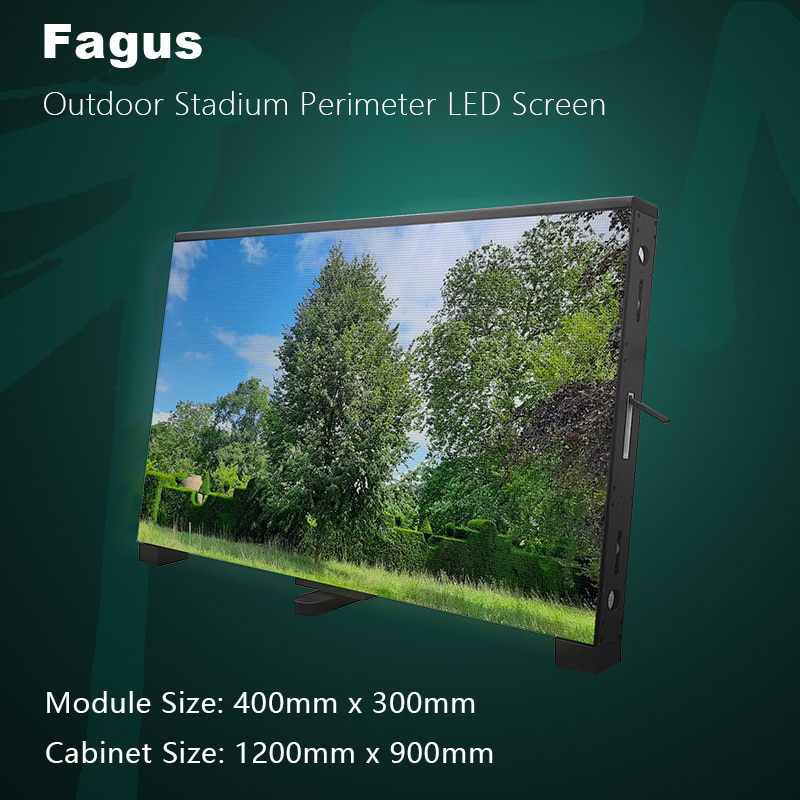

Fagus series are Led displays around stadiums, with pixel pitch of 6.25mm,8.33mm and 10mm, which can meet various special requirements of stadiums for high brightness, high refresh rate, safety protection and waterproof.
