Outdoor Message Signs (Metric size)

Outdoor Message Signs (Metric size)
Outdoor Message Signs (Metric size)
Outdoor Message Signs (Metric size)
Outdoor Message Signs (Metric size)

Outdoor Message Signs (Metric size)

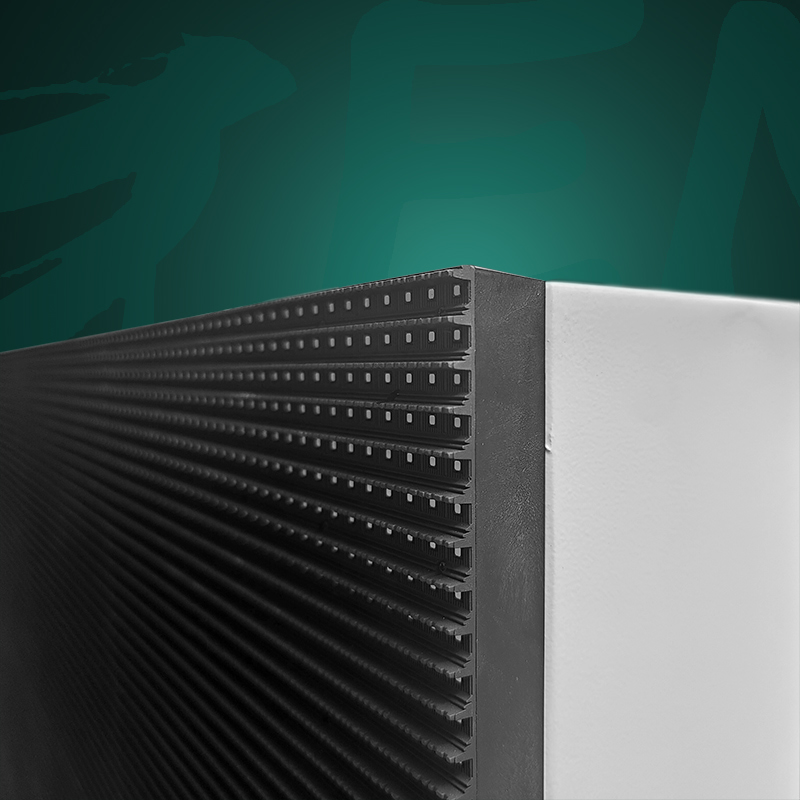

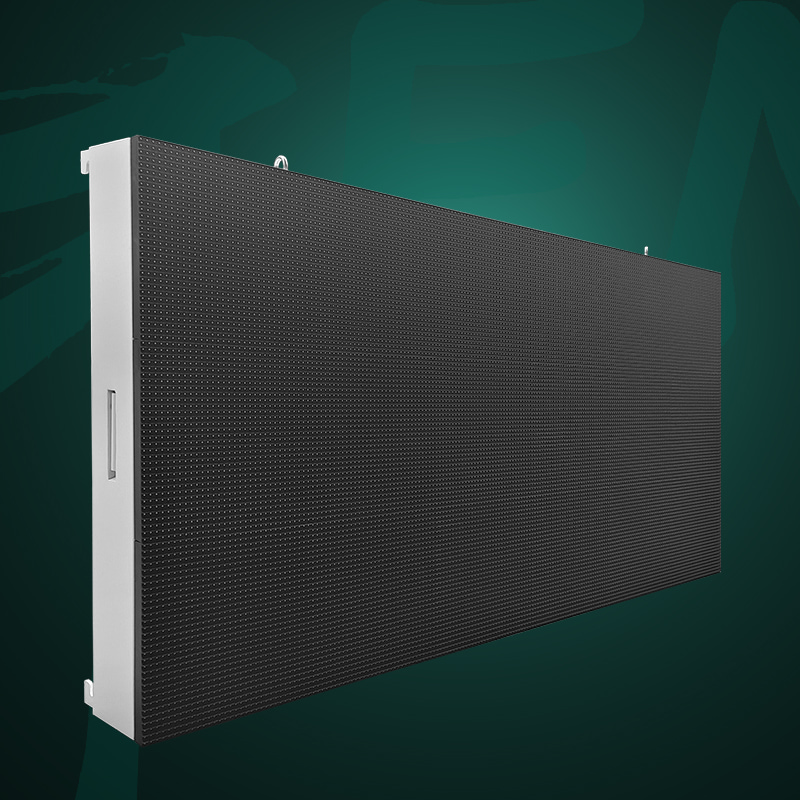

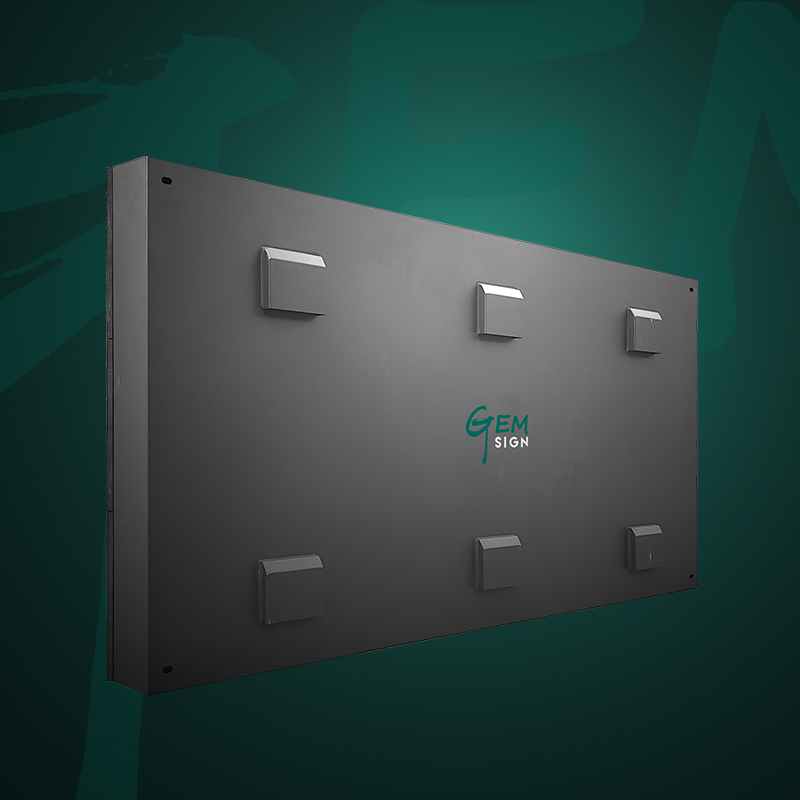

Populus-B and Populus-M series are mainly Led outdoor digital signs, one in English size and the other in metric size, which makes it easier for customers to choose.

  • Pixel Pitch :

    6.67mm, 8mm, 10mm
  • LED Type :

    SMD
  • Module Dimensions :

    320x320 mm
  • Active Dimensions :

    W: 1920/2240/2560(mm), H: 640/960/1280(mm)
  • Brightness :

    6000-8000
  • Ingress Protection :

    IP65
  • Service :

    Front / Rear installation, Fron Maintenance

Populus are the most effective dynamic advertising medium and source for sharing community information available. They allow you to capitalize on the local audience passing by your location on a daily basis.



Populus are Graphics and Animation Capable Signs. These outdoor electronic signs feature a variety of pixel pitches depending on the amount of detail desired and various viewing angles to meet different viewing needs.







TECHNICAL PARAMETER Populus -M (Metric)
Populus-M6 Populus-M8 Populus-M10
Physical Pixel Pitch (mm) 6.67 8.00 10.00
Pixel Density (dots) 22,500 15,625 10,000
LED Type SMD2727 SMD2727 SMD2727
Module Dimensions (mm) 320x320 320x320 320x320
Module Matrix (dots) 48x48 40x40 32x32
Module Weight  (kg)
Active Dimensions of Display W: 1920/2240/2560(mm), H: 640/960/1280(mm)
Cabinet Weight  (kg)
Electrical Scan Mode  6S 4S 2S
Video Rate (Hz) 60 60 60
Refresh rate (Hz) 1920-3840
Color Processing  RGB 65536 levels (3×16bit)
Data Stored on Module No
Input Pvoltage AC 100~240V 50/60Hz
Max.consumption (w/m²) 600 600 600
Avg. consumption (w/m²) 200 200 200
Optical Brightness (nit) 6000-10000 6000-10000 6000-10000
Contrast Ratio 8000 : 1
Viewing Angle(H/V) 160° /120°
Dimming Capability  256 levels
Color temperature 4,500 - 9,000K (Adjustable )
Operational Working Environment  ﹣10℃-+40℃/10%RH-90%RH
Storage Environment  ﹣40℃-+60℃/10%RH-90%RH
Cooling  Quiet running vent fans
Ingress Protection IP66 front / IP55 rear
LED Lifetime  100,000 hours
MTBF >5,000 hours
Service  Front / Rear installation, Fron Maintenance
