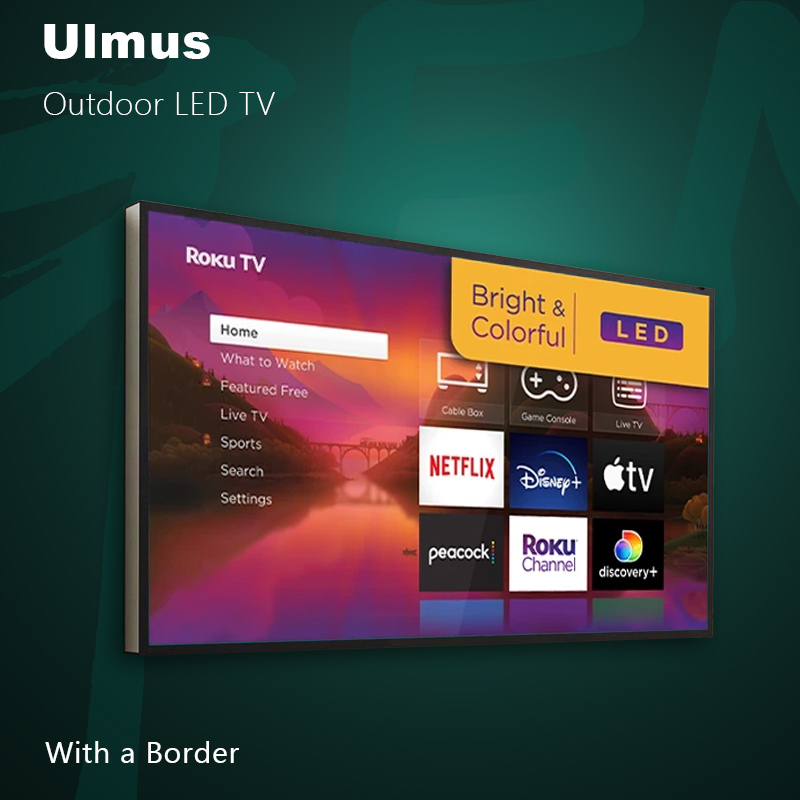

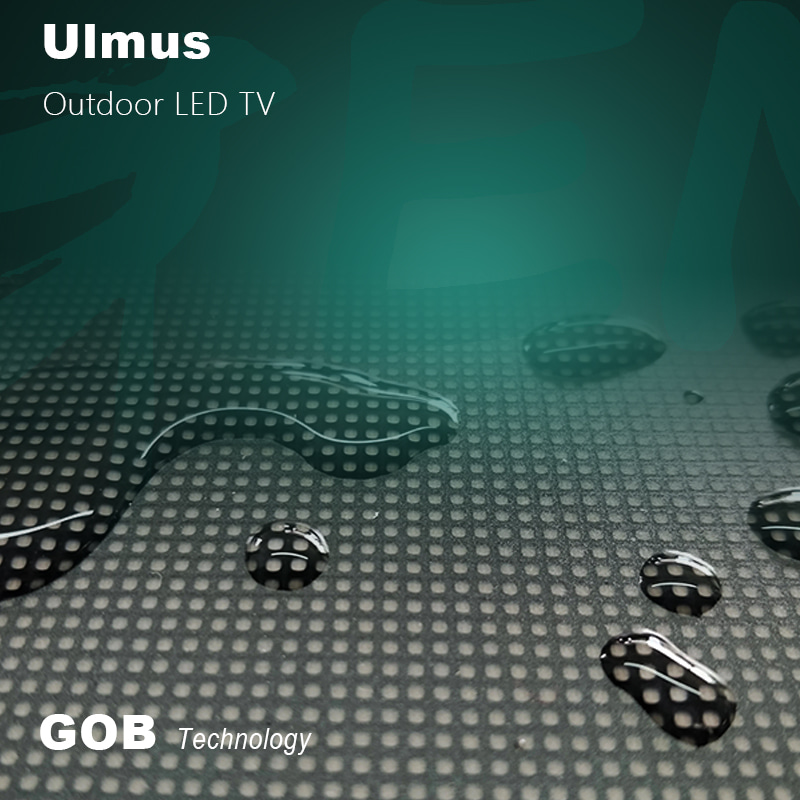

A waterproof LED outdoor TV created by GOB technology. Crafted with high-quality metal for enduring durability, braving all elements and ensuring an extended lifespan even in extreme weather conditions.
Pixel Pitch :
1.25mm 1.56mm 1.95mm 2.60mmLED Type :
GOBModule Dimensions :
250 x 250 mmActive Dimensions :
2250 x 1250mm (101"), 2750 x 1500mm (123"), 3000 x 1750mm (136")Brightness :
4000-5000 nitIngress Protection :
IP 65Service :
Front MaintenanceA waterproof LED outdoor TV created by GOB technology. Crafted with high-quality metal for enduring durability, braving all elements and ensuring an extended lifespan even in extreme weather conditions.

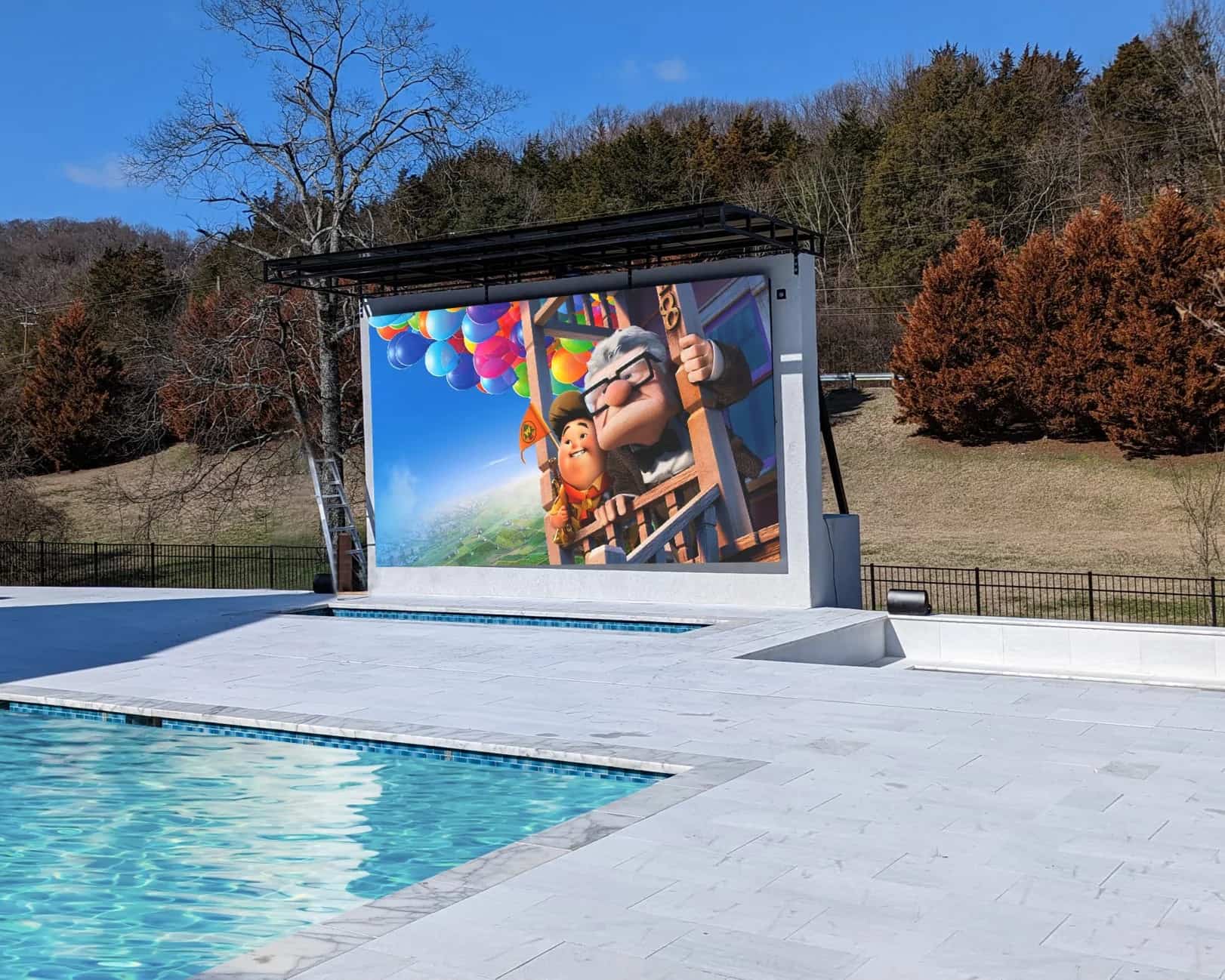

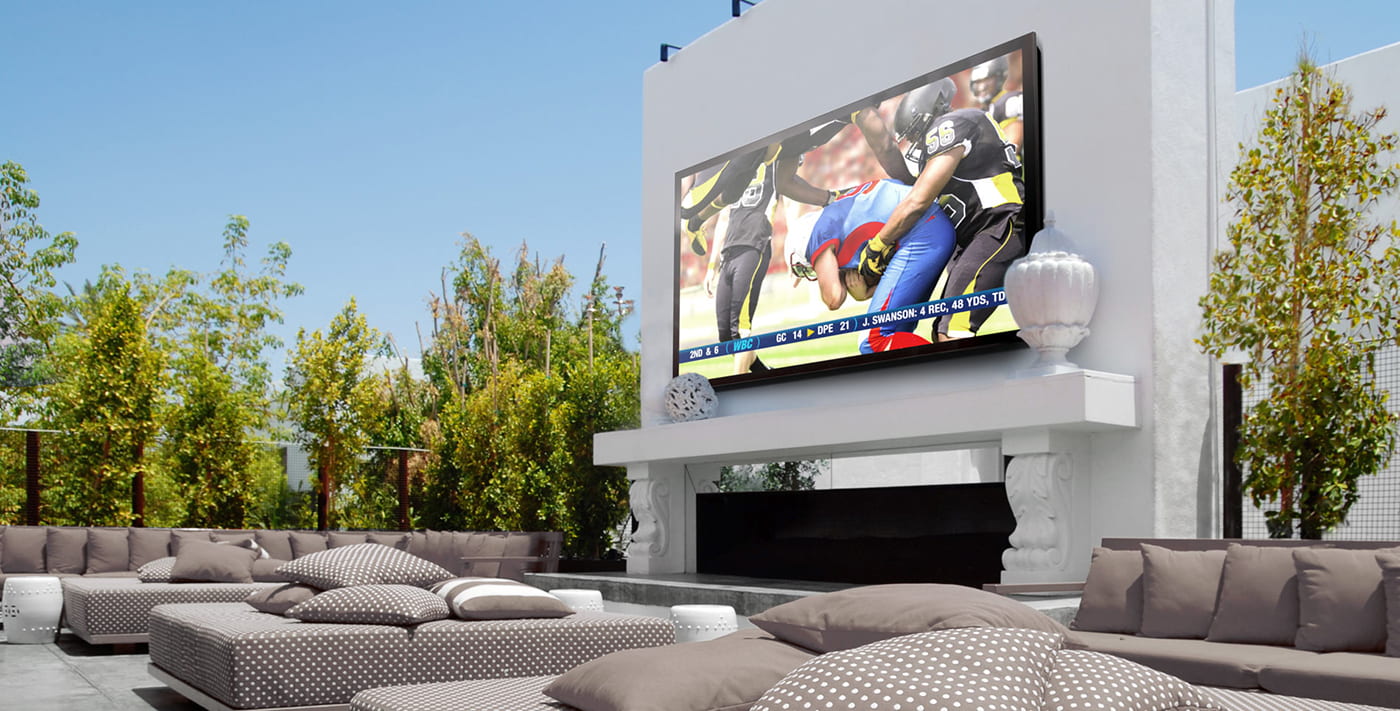

Ulmus Series, with 4000 nits of brightness, it's ideal for fully sunny outdoor spaces and active areas like poolside and outdoor seating. It has heat-resistant screens and is a commercial-grade display, being 10-15 times brighter than indoor TVs.
| TECHNICAL PARAMETER | Ulmus101 | Ulmus123 | ||||
| Ulmus101-1.2 | Ulmus101-1.5 | Ulmus101-1.2 | Ulmus101-1.5 | Ulmus101-1.9 | ||
| Physical | Pixel Pitch (mm) | 1.25 | 1.56 | 1.25 | 1.56 | 1.95 |
| Pixel Density (dots) | 640,000 | 409,600 | 640,000 | 409,600 | 262,144 | |
| LED Type | GOB | GOB | GOB | GOB | GOB | |
| Module Dimensions (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | |
| Module Matrix (dots) | 200 x 200 | 160 x 160 | 200 x 200 | 160 x 160 | 128 x 128 | |
| Portrait of display | Landscape | Landscape | ||||
| Active Dimensions of Display | 2250 x 1250 (101") | 2750 x 1500 (123") | ||||
| Native Resolution (dots) | 1800 x 1000 | 1440 x 800 | 2200 x 1200 | 1760 x 960 | 1408 x 768 | |
| Weight (kg) | ||||||
| Electrical | Scan Mode | 40S | 26S | 40S | 26S | 32S |
| Video Rate (Hz) | 60 | 60 | 60 | 60 | 60 | |
| Refresh rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | |
| Color Processing | RGB 65536 levels (3×16bit) | RGB 65536 levels (3×16bit) | ||||
| Data Stored on Module | Yes | Yes | ||||
| Input Pvoltage | AC 100~240V 50/60Hz | AC 100~240V 50/60Hz | ||||
| Max.consumption (w) | 2295 | 3366 | ||||
| Avg. consumption (w) | 765 | 1122 | ||||
| Optical | Brightness (nit) | 4000 | 4000 | |||
| Contrast Ratio | 10000 : 1 | 10000 : 1 | ||||
| Viewing Angle(H/V) | 160° /160° | 160° /160° | ||||
| Dimming Capability | 256 levels | 256 levels | ||||
| Color temperature | 4,500 - 9,000K (Adjustable ) | 4,500 - 9,000K (Adjustable ) | ||||
| Operational | Working Environment | ﹣10℃-+40℃/10%RH-90%RH | ﹣10℃-+40℃/10%RH-90%RH | |||
| Storage Environment | ﹣40℃-+60℃/10%RH-90%RH | ﹣40℃-+60℃/10%RH-90%RH | ||||
| Cooling | Quiet running vent fans | Quiet running vent fans | ||||
| Ingress Protection | IP65 | IP65 | ||||
| LED Lifetime | 100,000 hours | 100,000 hours | ||||
| MTBF | >5,000 hours | >5,000 hours | ||||
| Service | Front Maintenance | Front Maintenance | ||||
| TECHNICAL PARAMETER | Ulmus136 | ||||
| Ulmus101-1.2 | Ulmus101-1.5 | Ulmus101-1.9 | Ulmus101-2.6 | ||
| Physical | Pixel Pitch (mm) | 1.25 | 1.56 | 1.95 | 2.60 |
| Pixel Density (dots) | 640,000 | 409,600 | 262,144 | 147,456 | |
| LED Type | GOB | GOB | GOB | GOB | |
| Module Dimensions (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | |
| Module Matrix (dots) | 200 x 200 | 160 x 160 | 128 x 128 | 96 x 96 | |
| Portrait of display | Landscape | ||||
| Active Dimensions of Display | 3000 x 1750 (136") | ||||
| Native Resolution (dots) | 2400 x 1400 | 1920 x 1120 | 1536 x 896 | 1152 x 672 | |
| Weight (kg) | |||||
| Electrical | Scan Mode | 40S | 26S | 32S | 24S |
| Video Rate (Hz) | 60 | 60 | 60 | 60 | |
| Refresh rate (Hz) | 3840 | 3840 | 3840 | 3840 | |
| Color Processing | RGB 65536 levels (3×16bit) | ||||
| Data Stored on Module | Yes | ||||
| Input Pvoltage | AC 100~240V 50/60Hz | ||||
| Max.consumption (w) | 4284 | ||||
| Avg. consumption (w) | 1428 | ||||
| Optical | Brightness (nit) | 4000 | |||
| Contrast Ratio | 10000 : 1 | ||||
| Viewing Angle(H/V) | 160° /160° | ||||
| Dimming Capability | 256 levels | ||||
| Color temperature | 4,500 - 9,000K (Adjustable ) | ||||
| Operational | Working Environment | ﹣10℃-+40℃/10%RH-90%RH | |||
| Storage Environment | ﹣40℃-+60℃/10%RH-90%RH | ||||
| Cooling | Quiet running vent fans | ||||
| Ingress Protection | IP65 | ||||
| LED Lifetime | 100,000 hours | ||||
| MTBF | >5,000 hours | ||||
| Service | Front Maintenance | ||||
Popsign series has three products which are PA,PB and PD. It has the advantages of fixed size, high brightness, light weight, portable and simple and convenient software operation. The main application is shop, bar, restaurant and other window advertisements, information release, to meet customers' demand for small Led displays.
Learn More
Taxus series is outdoor high-brightness led poster featuring high definition, perfect display ratio of 16:9 with pixel pitch ranging from 1.25mm to 2.6mm, and IP65 high waterproof rating.
Learn More
A waterproof LED outdoor TV created by GOB technology. Crafted with high-quality metal for enduring durability, braving all elements and ensuring an extended lifespan even in extreme weather conditions.
Learn More
Populus-B and Populus-M series are mainly LED outdoor digital signs, one in English size and the other in metric size, which makes it easier for customers to choose.
Learn More
Populus-B and Populus-M series are mainly Led outdoor digital signs, one in English size and the other in metric size, which makes it easier for customers to choose.
Learn More
Fagus series are Led displays around stadiums, with pixel pitch of 6.25mm,8.33mm and 10mm, which can meet various special requirements of stadiums for high brightness, high refresh rate, safety protection and waterproof.
Learn More
