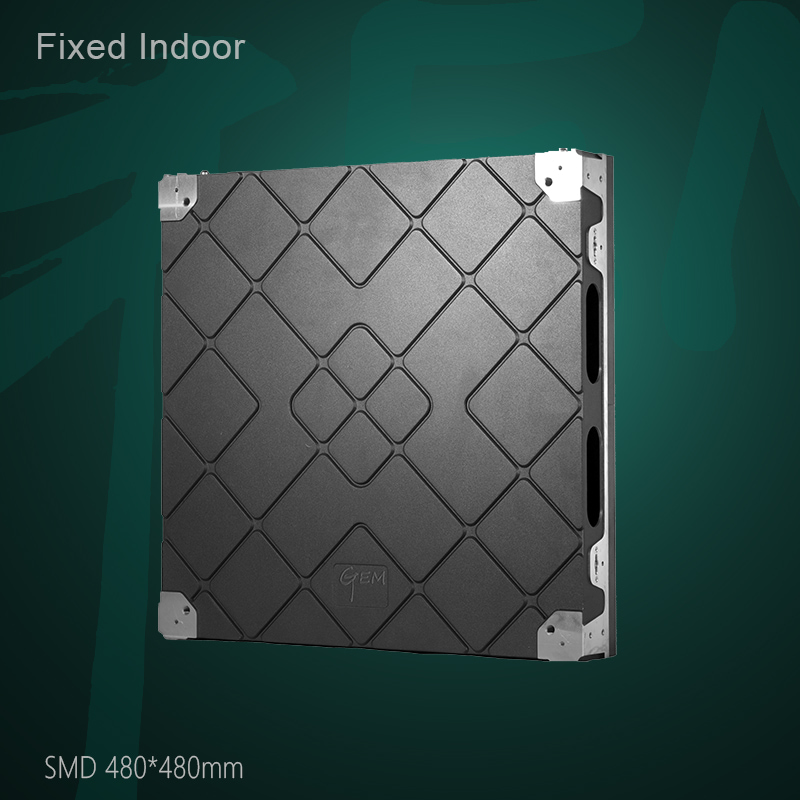

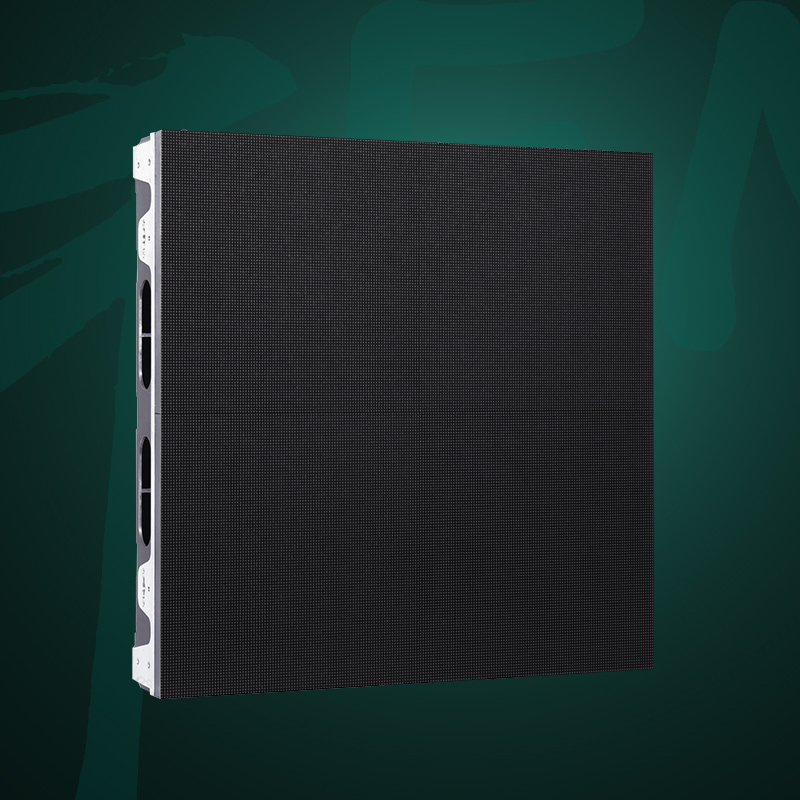

Gemsign’s Celtis series is designed for indoor fixed applications and can be installed for all indoor commercial use. Pixel pitch ranges from 1.579mm to 4 mm which can promote your business by providing perfect visual effects.
Pixel Pitch :
1.579mm, 1.875mm, 2mm, 2.5mm, 3mm,4mmModule Dimensions :
240mm x 240mmCabinet Dimensions :
480mm x 480mmBrightness :
600-1000nitsMax. consumption :
600 w/m2Ingress Protection :
IP43Service :
Front / Rear installation, Front ServiceGemsign’s Celtis series is designed for indoor fixed applications and can be installed for all indoor commercial use. Pixel pitch ranges from 1.579mm to 4 mm which can promote your business by providing perfect visual effects.
Pixel Pitch : 1.579mm, 1.875mm, 2mm, 2.5mm, 3mm,4mm
Cabinet Dimensions : 480mm x 480mm
Features
1) Front Service Design
Front service makes the maintenance is convenient and quick.
2) Ultra-thin Cabinet
The thickness of Celtis series is only 50mm and the weight is only 5.6kg , which is very thin and lightweight, easy to install, assemble and disassemble.
3) Wireless connection LED Module
plug-and-play design of the LED module data and power input make it no need for additional DC power lines and cables, which is easy for installation and maintenance.
4) High Quality Thin LED Panel
Celtis series 1:1 ratio LED screen adopts high quality LED lights provides the stunning visual effect.
5) Excellent Display Experience
Advantages of seamless splicing design, fast locking, simple internal wiring and perfect cabinet splicing makes the LED display seamless, with vivid images, clear video display, and gorgeous picture quality.
6) Wide Viewing Angle
Fine Pitch LED Display’s wide viewing angle allows you get the full view no matter where you’re sitting, while UHD picture and video content assures you an immersive viewing.
TECHNICAL PARAMETER | Celtis-1.5 | Celtis-1.8 | Celtis-2.5 | Celtis-3 | Celtis-4 | |
Physical | Pixel Pitch (mm) | 1.579 | 1.875 | 2.5 | 3 | 4 |
Pixel Density (dots) | 401,111 | 284,444 | 160,000 | 111,111 | 62,500 | |
LED Type | SMD1212 | SMD1515 | SMD2121 | SMD2121 | SMD2121 | |
Module Dimensions (mm) | 240 x 240 | 240 x 240 | 240 x 240 | 240 x 240 | 240 x 240 | |
Module Matrix (dots) | 152 x 152 | 128 x 128 | 96 x 96 | 80 x 80 | 60 x 60 | |
Module Weight (kg) | ||||||
Cabinet Dimensions (mm) | 480 x 480 | 480 x 480 | 480 x 480 | 480 x 480 | 480 x 480 | |
Cabinet Matrix (dots) | 304x304 | 256x256 | 192x192 | 160x160 | 120x120 | |
Cabinet Weight (kg) | ||||||
Electrical | Scan Mode | 40S | 32S | 32S | 20S | 15S |
Video Rate (Hz) | 60 | 60 | 60 | 60 | 60 | |
Refresh rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | |
Color Processing | 14bit | 14bit | 14bit | 14bit | 14bit | |
Data Stored on Module | Yes | Yes | Yes | Yes | Yes | |
Input Pvoltage | AC 100~240V 50/60Hz | |||||
Max.consumption (w/m²) | 521 | 521 | 521 | 521 | 521 | |
Avg. consumption (w/m²) | 174 | 174 | 174 | 174 | 174 | |
Optical | Brightness | 800 | 800 | 800 | 800 | 800 |
Contrast Ratio | 10000 : 1 | |||||
Viewing Angle(H/V) | 160° /160° | |||||
Dimming Capability | 256 levels | |||||
Color temperature | 4,500 - 9,000K (Adjustable ) | |||||
Operational | Working Environment | ﹣10℃-+40℃/10%RH-90%RH | ||||
Storage Environment | ﹣40℃-+60℃/10%RH-90%RH | |||||
Cooling | Thermal nature ventilation | |||||
Ingress Protection | IP43 | |||||
LED Lifetime | 100,000 hours | |||||
MTBF | >5,000 hours | |||||
Service | Front / Rear installation, Front Service |
