High refresh rate, small spacing, and high contrast allow Carya to maximize customer experience and value in a variety of indoor application scenarios. Such as conference rooms, command centers, party and government agencies, subway commercial displays, etc.
Pixel Pitch :
0.9375 mm, 1.25mm, 1.5625mm, 1.875mmLED Type :
SMDCabinet Dimensions :
600mm x 337.5mm (27inches)Brightness :
600nitsMax. consumption :
720 w/m2Ingress Protection :
IP43Service :
Front / Rear installation, Front ServiceHigh refresh rate, small spacing, and high contrast allow Carya to maximize customer experience and value in a variety of indoor application scenarios. Such as conference rooms, command centers, party and government agencies, subway commercial displays, etc.
Pixel Pitch: 0.9375 mm, 1.25mm, 1.5625mm, 1.875mm

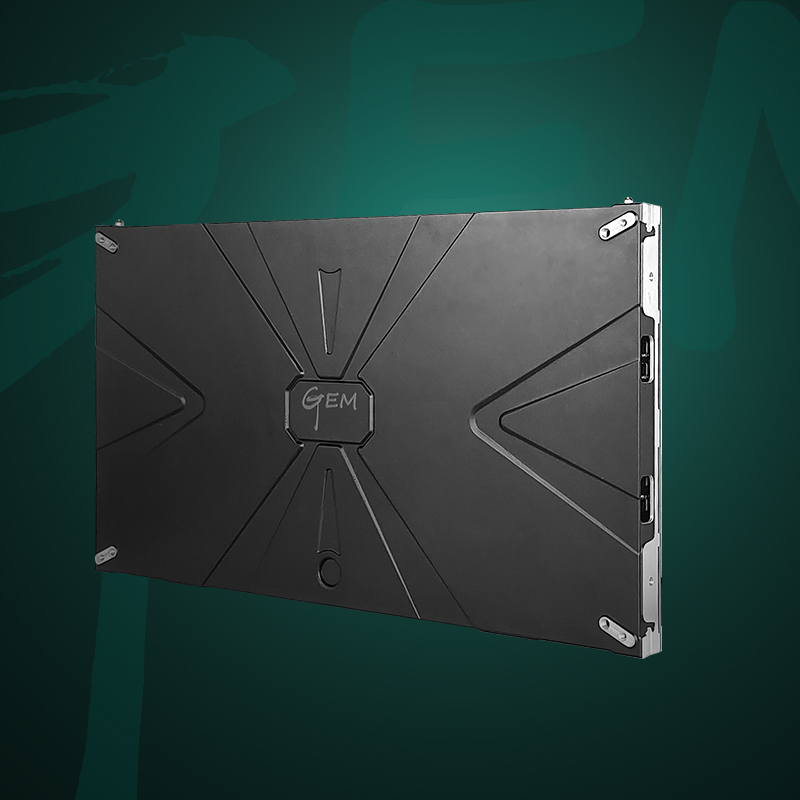

Cabinet Dimensions: 600mm x 337.5mm (27inches)
Feature
1) High definition
A panel ratio of 16:9 combined with fine pixel pitch allow the setup of full HD，4k,8k resolution displays achievable.
2) Ultra thin
Carya series features an edge thickness of 32mm and the combined thickness of only 40mm when mounted with slim line of floating bracket.
3) Installation solution
Slim-line floating mounting brackets allow quick and easy installation and results in a flat seamless finish.
4) Easy maintenance
LED moudles front service for easy maintenance, the innovative vacuum suction tool prevents damage to the LEDs during maintenance.
5) Creative corner
Corner screen building options for creative applications.
| TECHNICAL PARAMETER | Carya （SMD） | ||||
| Carya-0.9 | Carya-1.2 | Carya-1.5 | Carya-1.8 | ||
| Physical | Pixel Pitch (mm) | 0.9375 | 1.25 | 1.5625 | 1.875 |
| Pixel Density (dots) | 1,137,778 | 640,000 | 409,600 | 284,444 | |
| LED Type | SMD0606 | SMD1010 | SMD1010 | SMD1515 | |
| Module Dimensions (mm) | 300*168.75 | 300*168.75 | 300*168.75 | 300*168.75 | |
| Module Matrix (dots) | 320*180 | 240*135 | 192*108 | 160*90 | |
| Module Weight (kg) | |||||
| Cabinet Dimensions (mm) | 600*337.5*39 （27’’） | 600*337.5*39 （27’’） | 600*337.5*39 （27’’） | 600*337.5*39 （27’’） | |
| Cabinet Matrix (dots) | 640 x 360 | 480*270 | 384 x 216 | 320*160 | |
| Cabinet Weight (kg) | |||||
| Electrical | Scan Mode | 60s | 60s | 54s | 45s |
| Video Rate (Hz) | 60 | 60 | 60 | 60 | |
| Refresh rate (Hz) | 3840 | 3840 | 3840 | 3840 | |
| Color Processing | 14bit | 14bit | 14bit | 14bit | |
| Data Stored on Module | Yes | Yes | Yes | Yes | |
| Input Pvoltage | AC 100~240V 50/60Hz | AC 100~240V 50/60Hz | AC 100~240V 50/60Hz | AC 100~240V 50/60Hz | |
| Max.consumption (w/m²) | 593 | 593 | 593 | 593 | |
| Avg. consumption (w/m²) | 198 | 198 | 198 | 198 | |
| Optical | Brightness | 600 | |||
| Contrast Ratio | 12000：1 | ||||
| Viewing Angle(H/V) | 160° /160° | ||||
| Dimming Capability | 256 levels | ||||
| Color temperature | 4,500 - 9,000K (Adjustable ) | ||||
| Operational | Working Environment | ﹣10℃-+40℃/10%RH-90%RH | |||
| Storage Environment | ﹣40℃-+60℃/10%RH-90%RH | ||||
| Cooling | Thermal nature ventilation | ||||
| Ingress Protection | IP43 | ||||
| LED Lifetime | 100,000 hours | ||||
| MTBF | >5,000 hours | ||||
| Service | Front / Rear installation, Front Service | ||||
