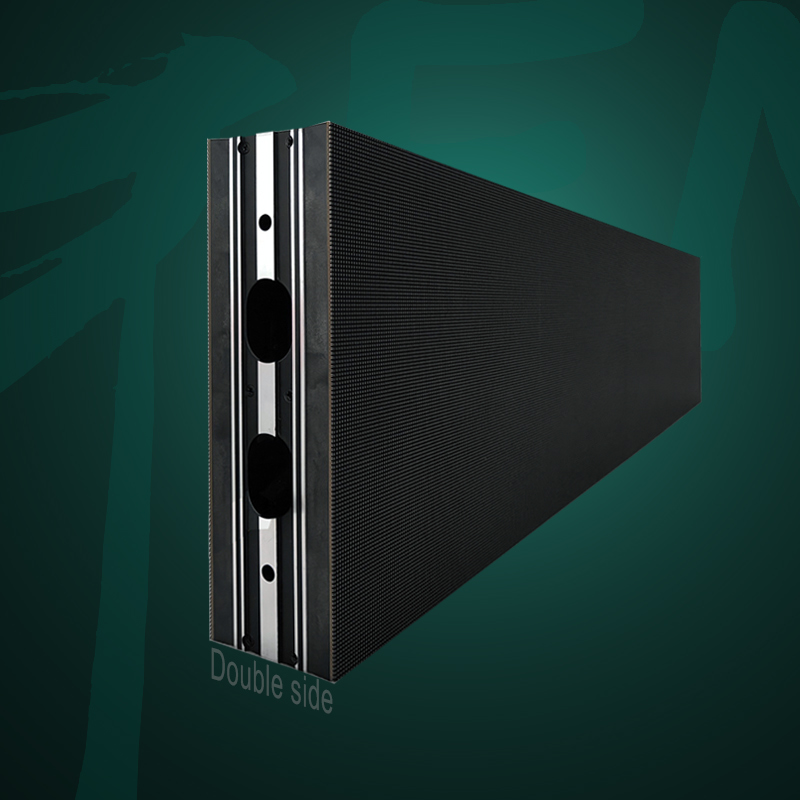

Gemsign’s Ceiba-D series is one front service Double-sided LED Display, which is Ultra-thin and ultra-lightweight, with good color saturation and contrast.
Pixel Pitch :
1.95mm; 2.5mm; 3.91mmModule Dimensions :
250mm x 250mmCabinet Dimensions :
1000*250; 750*250; 500*250Brightness :
600nits -800nitsMax. consumption :
720 w/m2Ingress Protection :
IP43Service :
Front / Rear installation, Front ServiceGemsign’s Ceiba-D series is one front service Double-sided LED Display, which is Ultra-thin and ultra-lightweight, with good color saturation and contrast.

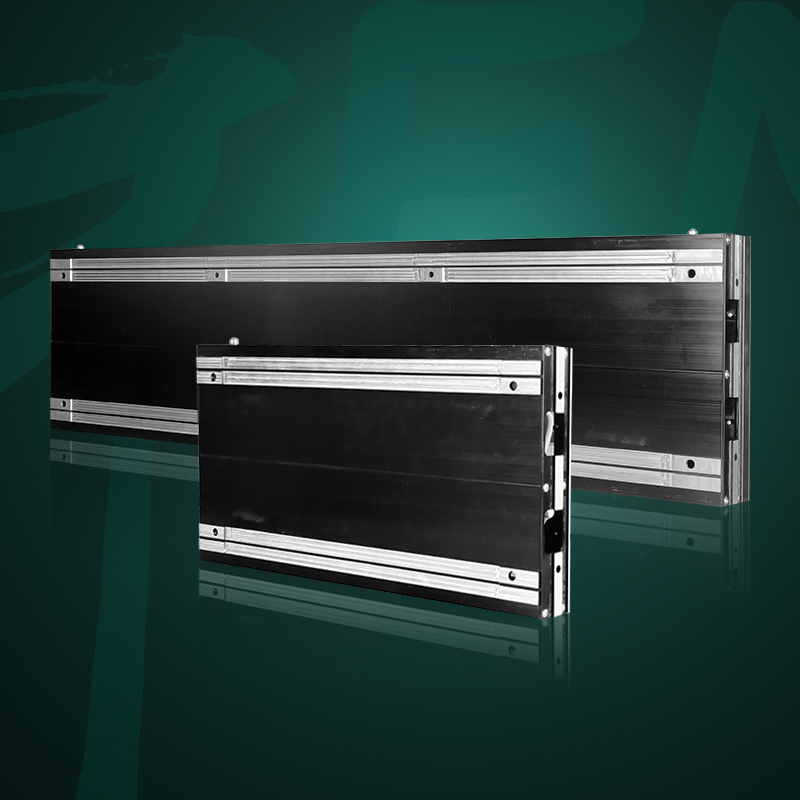

1) Ultra-lightweight & Ultra-thin Cabinet
The weight of a single cabinet is only 5.8kg. The ultra-lightweight and ultra-thin cabinet is convenient for transportation and installation while saving labor costs. The cabinet size can be customized to 250X500mm, 250x750mm and 250X1000, etc.
2) Perfect Structure
The aluminum profile design of the cabinet is stylish, simple and ultra-thin which is also with high strength, precision and excellent heat dissipation performance.
3) Front Service
The front service design saves labor and costs. The magnetic LED module can be quickly removed from the front with maintenance tools. Both the power box and the receiving card support front maintenance.
4) Hanging Installation
Ultra-lightweight and ultra-thin LED Display is very suitable for hanging installation. double-sided display allows more people to see your content from both sides of the display.
| TECHNICAL PARAMETER | Double sided | |||
| Ceiba-D-1.9 | Ceiba-D-2.6 | Ceiba-D-3.9 | ||
| Physical | Pixel Pitch (mm) | 1.953 | 2.604 | 3.91 |
| Pixel Density (dots) | 262,144 | 147,456 | 65,536 | |
| LED Type | SMD1515 | SMD1515 | SMD2020 | |
| Module Dimensions (mm) | 250 x 250 | 250 x 250 | 250 x 250 | |
| Module Matrix (dots) | 128 x 128 | 96 x 96 | 64 x 64 | |
| Module Weight (kg) | ||||
| Cabinet Dimensions (mm) | 1000 x 250, 750 x 250, 500 x 250 | |||
| Cabinet Matrix (dots) | 512 x 128,384 x 128, 256 x 128 | 384 x 96, 288 x 96, 192 x 96 | 256 x 64, 192 x 64, 128 x 64 | |
| Cabinet Weight (kg) | ||||
| Electrical | Scan Mode | 32S | 32 S | 16S |
| Video Rate (Hz) | 60 | 60 | 60 | |
| Refresh rate (Hz) | 3840 | 3840 | 3840 | |
| Color Processing | 14bit | 14bit | 14bit | |
| Data Stored on Module | Yes | Yes | Yes | |
| Input Pvoltage | AC 100~240V 50/60Hz | |||
| Max.consumption (w/m²) | 480 | 480 | 480 | |
| Avg. consumption (w/m²) | 160 | 160 | 160 | |
| Optical | Brightness (nit) | 800 | 800 | 800 |
| Contrast Ratio | 10000 : 1 | |||
| Viewing Angle(H/V) | 160° /160° | |||
| Dimming Capability | 256 levels | |||
| Color temperature | 4,500 - 9,000K (Adjustable ) | |||
| Operational | Working Environment | ﹣10℃-+40℃/10%RH-90%RH | ||
| Storage Environment | ﹣40℃-+60℃/10%RH-90%RH | |||
| Cooling | Thermal nature ventilation | |||
| Ingress Protection | IP43 | |||
| LED Lifetime | 100,000 hours | |||
| MTBF | >5,000 hours | |||
| Service | Front / Rear installation, Front Service | |||
