Gemsign’s Ceiba series is designed for home theaters, shops which has advantages of ultra-thin, high resolution, front maintenance design, seamless connection between modules and cabinets, and multiple sizes for selection.
Pixel Pitch :
1.95mm; 2.5mm; 3.91mmModule Dimensions :
250mm x 250mmCabinet Dimensions :
1000*250; 750*250; 500*250Brightness :
600nits -800nitsMax. consumption :
720 w/m2Ingress Protection :
IP43Service :
Front / Rear installation, Front ServiceGemsign’s Ceiba series is designed for home theaters, shops which has advantages of ultra-thin, high resolution, front maintenance design, seamless connection between modules and cabinets, and multiple sizes for selection.
Features
1)easy maintenance
Front service can save a lot of time and labor cost
2)Lightweight and Thin

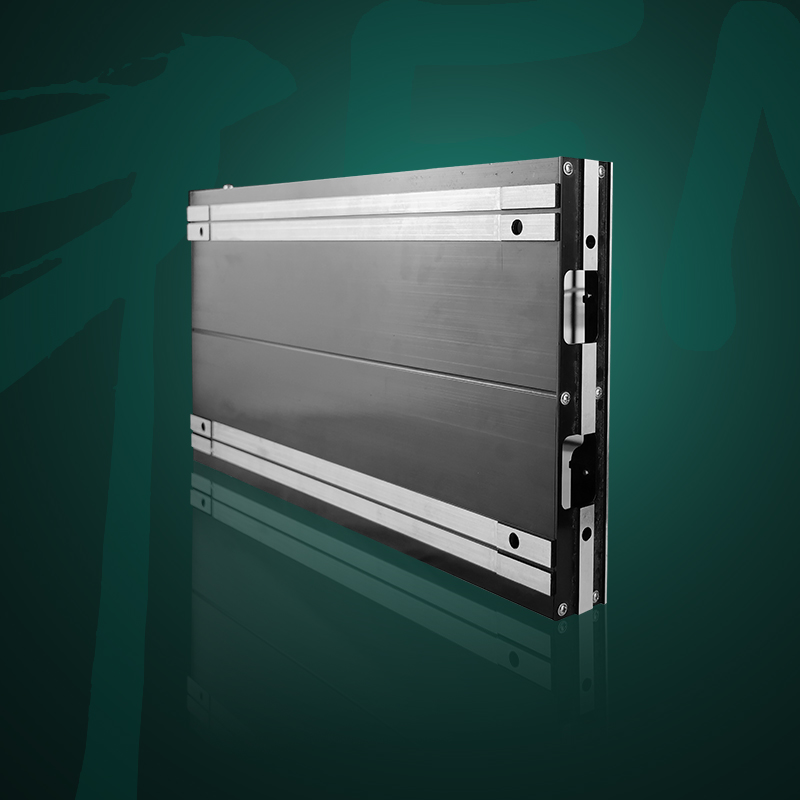

The ultra-thin LED cabinet does not require any structure, and the thickness is only 31mm, which is thinner than other wallpaper screens.
3)clean and smooth Connection
Plug-and-play design of the LED module data and power input make it no need for additional DC power lines and cables, which is easy for installation and maintenance.
4) flexible sizes for option

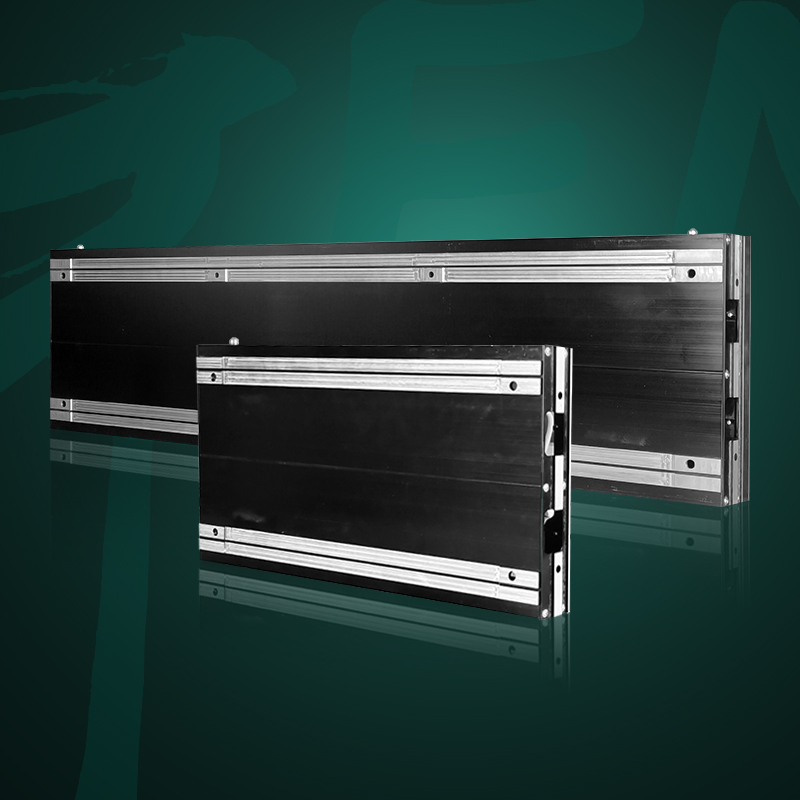

The cabinet dimension can be customized according to the 250x250mm module: three sizef of 500x250mm; 750x250mm; 1000x250mm for option.
5) creative right-angle splicing screen
Ceiba series led display can be spliced at 90 degrees, making the installation and the commercial application more flexible.
6) multiple way of installation of wall mounted, stacking and hanging
Ceiba series LED display can installed in different way, wall mounted, stacking and hanging.
7) High Definition Display
The high contrast ratio and high refresh rate provide more realistic and vivid visual effects.
TECHNICAL PARAMETER | Single sided | |||
Ceiba-1.9 | Ceiba-2.6 | Ceiba-3.9 | ||
Physical | Pixel Pitch (mm) | 1.953 | 2.604 | 3.91 |
Pixel Density (dots) | 262,144 | 147,456 | 65,536 | |
LED Type | SMD1515 | SMD1515 | SMD2020 | |
Module Dimensions (mm) | 250 x 250 | 250 x 250 | 250 x 250 | |
Module Matrix (dots) | 128 x 128 | 96 x 96 | 64 x 64 | |
Module Weight (kg) | ||||
Cabinet Dimensions (mm) | 1000 x 250, 750 x 250, 500 x 250 | |||
Cabinet Matrix (dots) | 512x128, 384x128, 256x128 | 384x96, 288x96, 192x96 | 256x64, 192x64, 128x64 | |
Cabinet Weight (kg) | ||||
Electrical | Scan Mode | 32S | 32 S | 16S |
Video Rate (Hz) | 60 | 60 | 60 | |
Refresh rate (Hz) | 3840 | 3840 | 3840 | |
Color Processing | 14bit | 14bit | 14bit | |
Data Stored on Module | Yes | Yes | Yes | |
Input Pvoltage | AC 100~240V 50/60Hz | |||
Max.consumption (w/m²) | 480 | 480 | 480 | |
Avg. consumption (w/m²) | 160 | 160 | 160 | |
Optical | Brightness (nit) | 800 | 800 | 800 |
Contrast Ratio | 10000 : 1 | |||
Viewing Angle(H/V) | 160° /160° | |||
Dimming Capability | 256 levels | |||
Color temperature | 4,500 - 9,000K (Adjustable ) | |||
Operational | Working Environment | ﹣10℃-+40℃/10%RH-90%RH | ||
Storage Environment | ﹣40℃-+60℃/10%RH-90%RH | |||
Cooling | Thermal nature ventilation | |||
Ingress Protection | IP43 | |||
LED Lifetime | 100,000 hours | |||
MTBF | >5,000 hours | |||
Service | Front / Rear installation, Front Service |
